American Unified Thread (UN): cum signo ANSI/ASME B1.1 obtemperet, angulus filo 60° est.
Three-dens designa: Tres acies in instrumento secandae sunt, quae plures fila simul procedere possunt ad efficientiam meliorem efficiendam.
Commendatur processus duritia: HRC≤45°

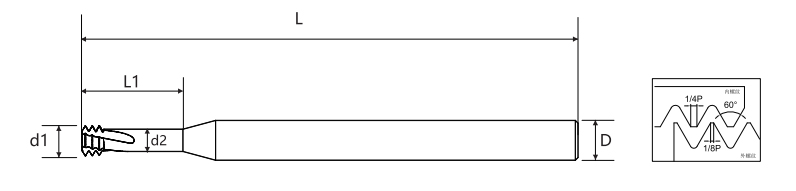

| Pix | Crassum dentium UNC | denique dentes UNF | Diameter ferrum d1 | Fuga diam d2 | Longitudo laminae effective L1 | Diameter palpate D | altiore Longitudo L | Ferrum Comitis | Bottom foramen Diameter |
| 80 | No.0-80 | 1.15 | 0.737 | 3.5 | 4 | 50 | 3 | 1.2 | |
| 72 | No.1-72 | 1.45 | 0.991 | 3.9 | 4 | 50 | 3 | 1.6 | |
| 64 | No.1-64 | No.2-64 | 1.4 | 0.884 | 4.2 | 4 | 50 | 3 | 1.5 |
| 56 | No.2-56 | No.3-56 | 1.65 | 1.06 | 5 | 4 | 50 | 3 | 1.8 |
| 48 | No.3-48 | No.4-48 | 1.9 | 1.212 | 6 | 4 | 50 | 3 | 2.1 |
| 40 | 4, No | No.6-40 | 2.1 | 1.275 | 6 | 4 | 50 | 3 | 2.3 |
| 40 | No.5-40 | No.6-40 | 2.45 | 1.6 | 7.2 | 4 | 50 | 3 | 2.6 |
| 36 | No.8-36 | 3.3 | 2.383 | 8.7 | 4 | 50 | 3 | 3.5 | |
| 32 | No.6,No.8-32 | No.10-32 | 2.55 | 1.518 | 7.4 | 4 | 50 | 3 | 2.8 |
| 32 | No.8-32 | No.10-32 | 3.2 | 2.168 | 10 | 4 | 50 | 3 | 3.5 |
| 32 | No.10-32 | 3.8 | 2.768 | 10.3 | 4 | 50 | 3 | 5.5 | |
| 28 | 1/4"-28 | 5.25 | 4.071 | 13.2 | 6 | 50 | 3 | 3.9 | |
| 24 | No.10-24 | 5/16"-24 | 3.58 | 2.204 | 10.2 | 4 | 50 | 3 | 6.9 |
| 24 | 5/16"-24 | 6.68 | 5.304 | 16.5 | 8 | 60 | 3 | 5.2 | |
| 20 | 1/4"-20 | 7/16"-20 | 4.88 | 3.229 | 13.4 | 6 | 50 | 3 | 9.9 |
| 20 | 7/16"-20 | 9.55 | 7.899 | 23 | 10 | 75 | 4 | 11.4 | |
| 18 | 5/16"-18 | 6.15 | 4.316 | 16.9 | 8 | 60 | 3 | 6.5 | |
| 16 | 3/8"-16 | 6.7 | 4.636 | 19.1 | 8 | 60 | 3 | 8 | |
| 14 | 7/16"-14 | 9 | 6.641 | 23.3 | 10 | 75 | 4 | 9.4 |

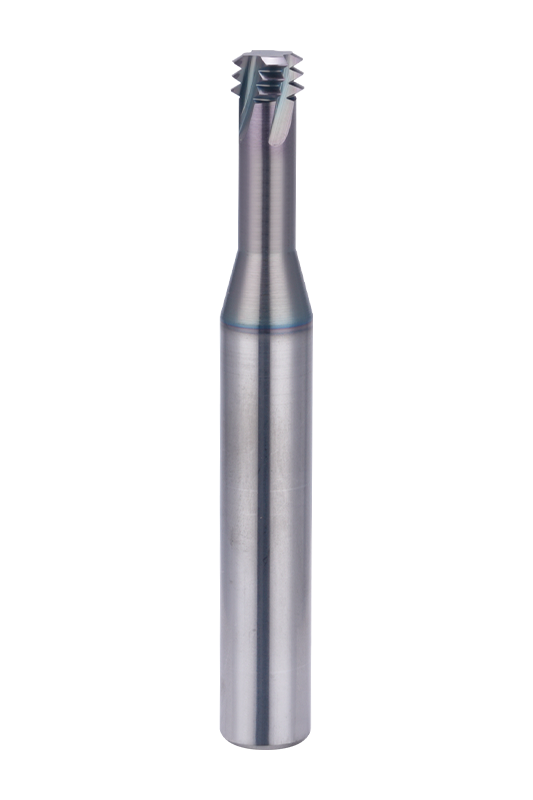

60° UN ANSI/ASME B1.1 Standard Tooth Thread Milling Cutter sequitur ANSI/ASME B1.1 vexillum pro staminibus Nationalibus Unitis, ut geometriam filo praeciso cum 60° angulo filo. Tres-dens secans consilium concedit simultaneum processus multiplicium viae sequelae, machinis augens efficientiam et onus secandum reducens, id quod maxime convenit ad fabricationem sequelam summae subtilitatis.
Dromones cum amplis materiis, incluso chalybe carbonii, mixturae chalybis, incorruptae chalybis, injectae ferrum, aluminium mixturae, admixtiones aeris, aliaque metalla non-ferra, stare possunt. Optima operandi causarum materiarum usque ad HRC≤45°, stabilem incisionem et instrumentum vitae extensum servat, altam accurationem et constantiam in machinis sequela procurans.
Flexibilis range specificationum praesto est, magnitudinum a No.0-80 ad 7/16"-14 obtegens, varias diametri incisiones et efficaces incisiones ad varias profunditates et machinis requisita accommodanda. Helix angulus accurate designatus minimizat resistentiam et instrumentum vestium secans, faciens hanc dromonem optimam electionem tam massae productionis quam applicationes machinis altas exquisitas..
