• Molendinaria universalis dromonis omnium seriei ferri materiarum curationi calori apta est. U-rimam structuram consilio habet, et ad asperam et finiendam aptam est.
• Convenit etiam ad processus materiarum non chalyrum et aluminii. Integram extensionem habet specificationum et exemplorum et amplis usuum.

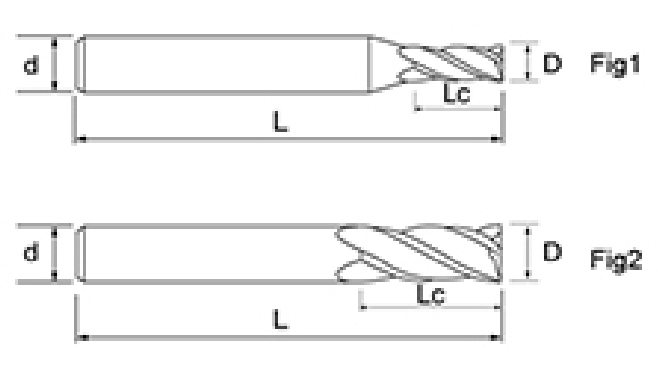

| Nec. | Diameter D | Tibia Longitud*o Lc | altiore Longitudo L | Shank Dia d | Ferrum Comitis F |
| NNC-4TU-D1 | 1 | 3 | 50 | 4 | 4 |
| NNC-4TU-D1 | 1 | 3 | 50 | 6 | 4 |
| NNC-4TU-D1.5 | 1.5 | 4 | 50 | 4 | 4 |
| NNC-4TU-D1.5 | 1.5 | 4 | 50 | 6 | 4 |
| NNC-4TU-D2 | 2 | 6 | 50 | 4 | 4 |
| NNC-4TU-D2 | 2 | 6 | 50 | 6 | 4 |
| NNC-4TU-D2.5 | 2.5 | 6 | 50 | 4 | 4 |
| NNC-4TU-D2.5 | 2.5 | 6 | 50 | 6 | 4 |
| NNC-4TU-D3 | 3 | 8 | 50 | 4 | 4 |
| NNC-4TU-D3 | 3 | 8 | 50 | 6 | 4 |
| NNC-4TU-D3 | 3 | 8 | 50 | 3 | 4 |
| NNC-4TU-D3.5 | 3.5 | 10 | 50 | 4 | 4 |
| NNC-4TU-D3.5 | 3.5 | 10 | 50 | 6 | 4 |
| NNC-4TU-D4 | 4 | 10 | 50 | 4 | 4 |
| NNC-4TU-D4 | 4 | 10 | 50 | 6 | 4 |
| NNC-4TU-D4 | 4 | 10 | 75 | 4 | 4 |
| NNC-4TU-D4 | 4 | 10 | 100 | 4 | 4 |
| NNC-4TU-D4.5 | 4.5 | 11 | 50 | 6 | 4 |
| NNC-4TU-D5 | 5 | 13 | 50 | 6 | 4 |
| NNC-4TU-D5 | 5 | 13 | 50 | 5 | 4 |
| NNC-4TU-D5 | 5 | 13 | 75 | 6 | 4 |
| NNC-4TU-D5.5 | 5.5 | 15 | 50 | 6 | 4 |
| NNC-4TU-D6 | 6 | 15 | 50 | 6 | 4 |
| NNC-4TU-D6 | 6 | 15 | 75 | 6 | 4 |
| NNC-4TU-D6 | 6 | 15 | 100 | 6 | 4 |
| NNC-4TU-D7 | 7 | 18 | 60 | 8 | 4 |
| NNC-4TU-D8 | 8 | 20 | 60 | 8 | 4 |
| NNC-4TU-D8 | 8 | 20 | 75 | 8 | 4 |
| NNC-4TU-D8 | 8 | 20 | 100 | 8 | 4 |
| NNC-4TU-D8 | 8 | 20 | 150 | 8 | 4 |
| NNC-4TU-D9 | 9 | 23 | 75 | 10 | 4 |
| NNC-4TU-D10 | 10 | 25 | 75 | 10 | 4 |
| NNC-4TU-D10 | 10 | 30 | 75 | 10 | 4 |
| NNC-4TU-D10 | 10 | 30 | 100 | 10 | 4 |
| NNC-4TU-D10 | 10 | 30 | 150 | 10 | 4 |
| NNC-4TU-D11 | 11 | 30 | 75 | 12 | 4 |
| NNC-4TU-D12 | 12 | 30 | 75 | 12 | 4 |
| NNC-4TU-D12 | 12 | 30 | 100 | 12 | 4 |
| NNC-4TU-D12 | 12 | 30 | 150 | 12 | 4 |
| NNC-4TU-D14 | 14 | 35 | 100 | 14 | 4 |
| NNC-4TU-D16 | 16 | 45 | 100 | 16 | 4 |
| NNC-4TU-D16 | 16 | 45 | 150 | 16 | 4 |
| NNC-4TU-D18 | 18 | 45 | 100 | 18 | 4 |
| NNC-4TU-D20 | 20 | 50 | 100 | 20 | 4 |
| NNC-4TU-D20 | 20 | 50 | 150 | 20 | 4 |
| Instrumentum Series | Diameter | Rad*ius | Rad*ius angularis | Tibia Longitudo | Longitudo effective | altiore Longitudo | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNC Universal Carbide Milling Cutters | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.2 | 0 0.3 | 0 0.5 | h5 |
| D1.0~D4.0 | 0 -0.008 | 0 0.3 | 0 0.5 | |||||||
| D1.0~D3.5 | 0 -0.008 | R0.5~R1.75 | /-0.005 | CR0.1~CR0.5 | /-0.005 | 0 0.3 | 0 0.5 | 0 0.5 | h6* | |
| D4.0~D11.0 | 0 -0.012 | R2.0~ R5.0 | /-0.008 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | ||||
| D12.0~D20.0 | 0 -0.015 | R6.0~ R10.0 | /-0.01 | |||||||

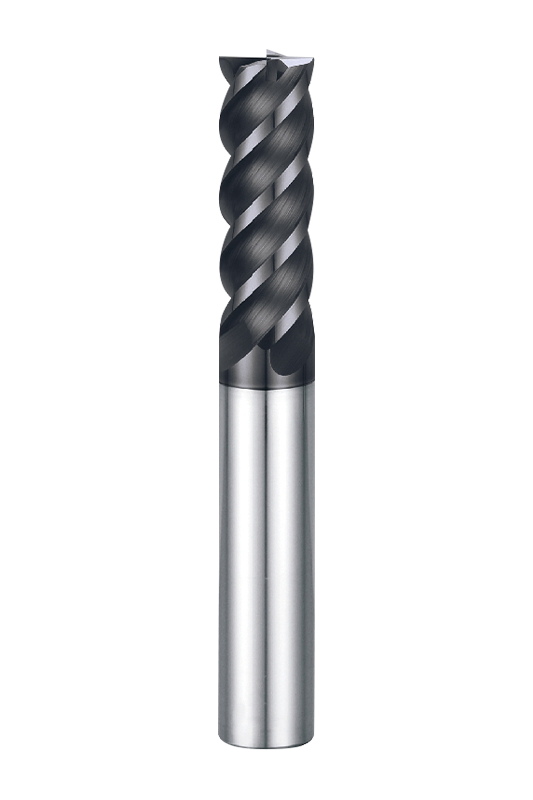

NNC-4TU 4 Flute Flat Head U Slote End Mills varias specificationes praebet, cum diametri instrumentis ab 1mm ad 20mm vndique, instrumentum longitudinum ab 3mm ad 45mm, et longi- tudines totales ab 50mm ad 150mm, ad diversas necessitates processus occurrendas. Exempli gratia, parvae specificationes, ut NNC-4TU-D1, aptae sunt ad bene processui, dum magnae specificationes, ut NNC-4TU-D20, magis aptae sunt ad sectionem efficientem. Compositiones flexibiles magnitudine idoneos efficiunt pro varietate missionum diversarum applicationum, meliori adaptabili et subtilitate processus.
Molendinarius dromonem in quattuor partibus planis deorsum consilium adhibet, coniuncto cum structura U-sulca, quae adiuvat ad astulas efficienter removendas, cumulum in processuendo calorem minuendum, et instrumentum vitae augendum. 45° Helix designatus angulus optimizes effectus secans, resistentiam secans reducit, processus leviorem facit, et sic superficiem metam meliorem facit. Praeterea plana ima structura accuratam sectionem verticalem efficit, quae opportunis occasionibus est, ubi summus praecisio fundum incisura exigitur.
Factus est summus durities, non-fragmentatio-repugnans offensionis substratae (0.6µm), cum chromium-aluminium compositum efficiens, instrumentum superficiei duritiei altioris, resistentia et oxidationis resistentia signanter emendantur, attritio inter instrumentum et fabricam reducitur, processus efficientiae augetur, instrumentum vestium reducitur et servitium vita extenditur. Duritia amplitudinis HRC≤45 dat ut stabiliter cum mediae fortitudinis fabrica materias obire et effectus diutius diuturnum usum praebere possit.
NNC-4TU 4 tibia plana capitis u socors extremitatis molendinorum apta est ad processui variarum materiarum, inclusarum chalybeum carbonum (<22HRC), mixturae chalybis (25-35HRC), ferro prae-durato (35-45HRC), etc. Praeterea potest etiam effectus bonos incisos praebere materias ut chalybs immaculata (≤30HRC) et admixtiones aeris.
