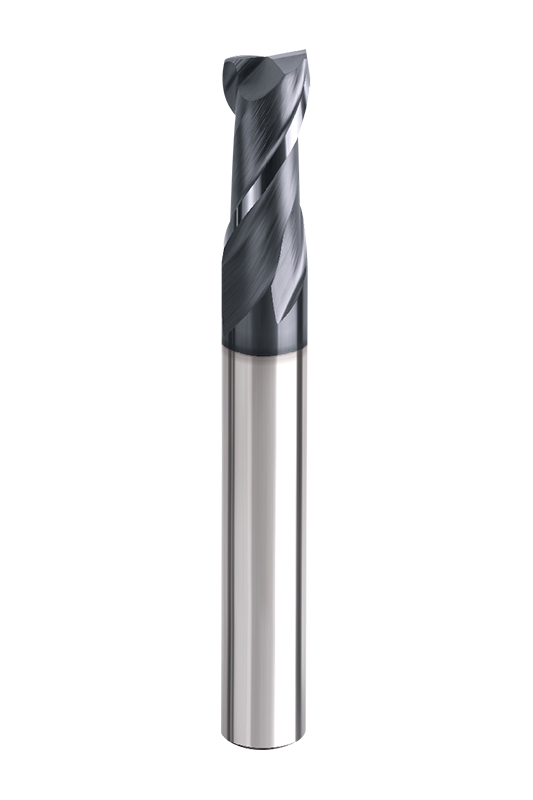

II Flute Flat Caput finem Mills

II Flute Flat Caput finem Mills

•  Duo-ora plana fundum molaribus caedentibus instrumenta adhibentur communiter in molendino, ad planum, sulcum et ad processui apta.
•  Provectus technologiae stridor ultra diametrum ferrum attingit et scapus diametri accurationem, ad amussim formas et partes processus aptas.
•  Alta vestis repugnans vestis adhibetur. Arcus transitus structurae resistentiam praebet altam fracturam et diuturnum incisionem ferro obdurati cognoscit.

  • II Flute Flat Caput finem Mills
Contact Us
Nec.

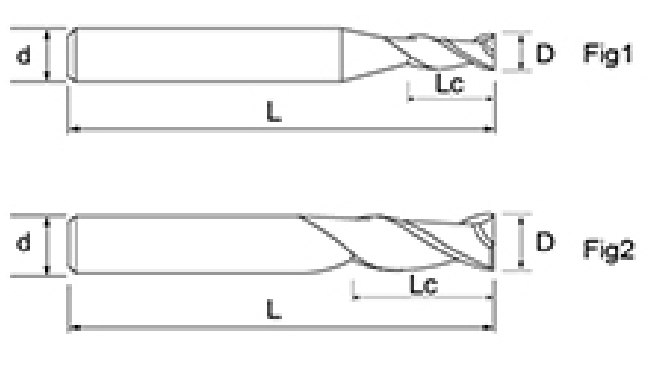

Diameter

D

Tibia Longitud*o

Lc

altiore Longitudo

L

Shank Dia

d

Ferrum Comitis

F

NNC-2T-D1 1 3 50 4 2
NNC-2T-D1 1 3 50 6 2
NNC-2T-D1.5 1.5 4 50 4 2
NNC-2T-D1.5 1.5 4 50 6 2
NNC-2T-D2 2 6 50 4 2
NNC-2T-D2 2 6 50 6 2
NNC-2T-D2.5 2.5 6 50 4 2
NNC-2T-D2.5 2.5 6 50 6 2
NNC-2T-D3 3 8 50 4 2
NNC-2T-D3 3 8 50 6 2
NNC-2T-D3 3 8 50 3 2
NNC-2T-D3.5 3.5 10 50 4 2
NNC-2T-D3.5 3.5 10 50 6 2
NNC-2T-D4 4 10 50 4 2
NNC-2T-D4 4 10 50 6 2
NNC-2T-D4.5 4.5 11 50 6 2
NNC-2T-D5 5 13 50 6 2
NNC-2T-D5 5 13 50 5 2
NNC-2T-D5.5 5.5 15 50 6 2
NNC-2T-D6 6 15 50 6 2
NNC-2T-D7 7 18 60 8 2
NNC-2T-D8 8 20 60 8 2
NNC-2T-D9 9 23 75 10 2
NNC-2T-D10 10 25 75 10 2
NNC-2T-D11 11 30 75 12 2
NNC-2T-D12 12 30 75 12 2
NNC-2T-D14 14 35 100 14 2
NNC-2T-D16 16 45 100 16 2
NNC-2T-D18 18 45 100 18 2
NNC-2T-D20 20 50 100 20 2

Processed Materials Ferrum mittite
Nodular Irrum 		Carbon Steel, Alloy Steel
~750N/mm² 		Carbon Steel, Alloy Steel
~30HRC 		Pre-duratum Ferro exstinctus et temperatus Steel
~40HRC 		Diver Pre-duratum Ferro exstinctus et temperatus Steel
~50HRC
Diameter
(mm) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min)
1 20000 215 20000 215 20000 175 20000 175 20000 65 20000 130
2 15000 345 15000 345 15000 310 15000 305 11150 90 13000 195
3 14000 590 14000 590 13000 546 10600 455 7500 130 8500 360
4 10800 600 10800 605 10000 560 8000 460 5500 145 6500 365
5 8200 630 8200 630 7600 585 6400 480 4500 145 5000 380
6 7000 650 7000 650 6400 600 5300 500 3700 150 4200 390
8 5200 645 5200 645 4800 590 4000 495 2800 150 3200 400
10 4200 630 4200 630 3800 585 3200 480 2200 150 2500 380
12 3500 630 3500 630 3200 585 2650 480 1850 150 2100 380
14 3000 590 3000 590 2700 545 2300 455 1600 145 1800 360
16 2600 590 2600 590 2400 545 2000 455 1400 130 1600 360
18 2300 580 2300 580 2100 530 1800 450 1250 130 1400 350
20 2050 580 2050 580 1900 530 1600 450 1100 130 1250 350

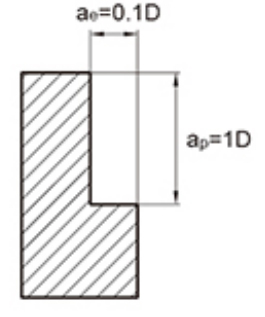

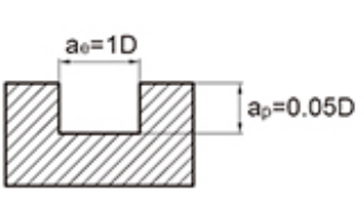

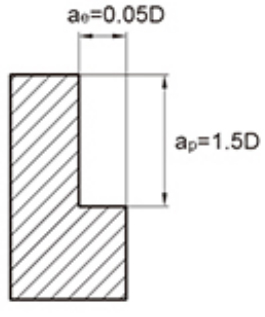

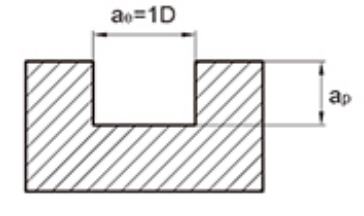

Maximum secans profundum
Instrumentum Diameter Ap cædens Profundum
1 0.15D
∅3 0.3D

1. Mensa suprascripta vexillum valores ad machinam lateralem molendini ostendit. Cum incisurae striatae cum ferramento, celeritas mensae superioris sit 50%~70%, et rate cibaria 40%~ 60% ut valor normae debet esse.
2. Quaeso utere instrumenta machinarum et instrumentorum summorum exquisitorum detentorum.
3. Quaeso utere aere refrigerando vel secando liquorem minus probabile ad fumum producendum.
4. Commendatur ut sequentiales mills pro parte millsurarum.
Cum rigiditas machinae instrumenti et institutionis workpiece pauper est, tremor et abnormis sonus fieri potest. Hoc in casu, celeritas et rate cibaria in mensa supra annum reduci debent.
6. Minimize instrumentum longitudo imminentium quantum fieri potest sine impedimento.
