American Unified Thread (UN): cum signo ANSI/ASME B1.1 obtemperet, angulus filo 60° est.
Unius stamina designatio: Instrumentum unam lineam ad tempus secat, ad machinam machinam et massam parvam productionem subtilitatem idoneam.
Machinatio commendatur duritia: HRC≤45°
| Pix | Crassum dentium UNC | denique dentes UNF | Diameter ferrum d1 | Fuga diam d2 | Longitudo laminae effective L1 | Diameter palpate D | altiore Longitudo L | Ferrum Comitis | Bottom foramen Diameter |
| 80 | No.0-80 | 1.15 | 0.737 | 4.6 | 4 | 50 | 3 | 1.3 | |
| 72 | No.1-72 | 1.45 | 0.991 | 3.9 | 4 | 50 | 3 | 1.6 | |
| 56 | No.2-56 | No.3-56 | 1.65 | 1.06 | 6.5 | 4 | 50 | 3 | 1.8 |
| 40 | No.4,No.5-40 | No.6-40 | 2.1 | 1.275 | 8.5 | 4 | 50 | 3 | 2.3 |
| 40 | No.5-40 | No.6-40 | 2.55 | 1.6 | 7.4 | 4 | 50 | 3 | 2.6 |
| 32 | No.6,No.8-32 | No.10-32 | 2.55 | 1.518 | 7.4 | 4 | 50 | 3 | 3.5 |
| 32 | No.8-32 | No.10-32 | 3.2 | 2.168 | 11 | 4 | 50 | 3 | 4.0 |
| 32 | No.10-32 | 3.8 | 2.768 | 12 | 4 | 50 | 3 | 4 | |
| 20 | 1/4"-20 | 7/16"-20 | 4.88 | 3.229 | 20 | 6 | 50 | 3 | 5.2 |
| 16 | 3/8"-16 | 7.7 | 20 | 8 | 60 | 3 | 8 |

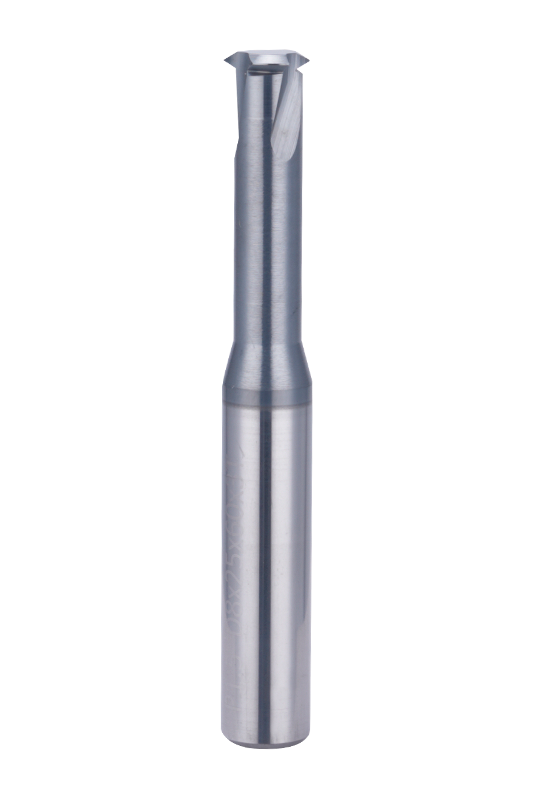

The 60° UN ANSI/ASME B1.1 Standard Single Tooth Thread Milling Cutter ordinatur ad subtilitatem machinationem sequelarum unificatarum (UN) cum 60° filorum angulo. Unius dente consilium secans altam accurationem et constantiam efficit, eamque apprime aptam facit ad curationem applicationes et parvam massam productionis.
Hic dromonis cum amplis materiis, incluso chalybe carbonii, admixto ferro, ferro immaculato, metallis non ferreis (ut aluminium et admixtionibus aeris) compatitur, et ferrum emittit. Commendatur ut materias machinandi cum duritia usque ad HRC 45 ut instrumentum meliorem perficiendi et longitudinis obtineat.
Flexilibus conformationibus parametri, haec molaribus fodinis sustinet signa filorum UNC et UNF, magnitudinum filorum a No.0-80 ad 3/8"-16 obtegens. Diameter ferramenti et longitudo secans efficax ordinantur ad profundis fila varia accommodanda, ac praeterea, eius bene librata tibia geometriae et optiones efficiens auget efficaciam et vetustatem augendi.
