American Unified Thread (UN): cum signo ANSI/ASME B1.1 obtemperet, angulus filo 60° est.
Plena designatio filum: Secans ferramenti marginem totam profile stamina contegit, et processus stamina in uno go compleri potest.
Commendatur processus duritia: HRC≤40°

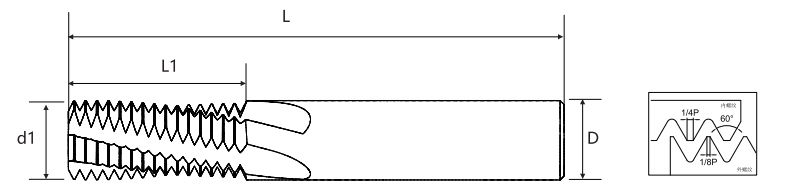

| Pix | Crassum dentium UNC | denique dentes UNF | Ultra Fines dentes UNEF | Diameter ferrum d1 | Longitudo laminae effective L1 | Diameter palpate D | altiore Longitudo L | Ferrum Comitis | Bottom foramen Diameter |
| 36 |
| No.8-36 |
| 3 | 8.5 | 4 | 50 | 3 | 3.5 |
| 32 |
| No.10-32 | No.12-3/8"-32 | 3.5 | 11.1 | 4 | 50 | 3 | 4 |
| 28 |
| No.12-28,1/4"-28 | 7/16",1/2"-28 | 4 | 11.8 | 4 | 50 | 3 | 4.6 |
| 28 |
| 1/4"-28 | 7/16",1/2"-28 | 5 | 12.7 | 6 | 60 | 3 | 5.5 |
| 28 |
|
| 7/16",1/2"-28 | 9.2 | 22.7 | 10 | 75 | 4 | 10.2 |
| 24 | N0.10-24 | 5/16",3/8"-24 | 9/16",1/16"-24 | 3.2 | 10.6 | 4 | 50 | 3 | 3.8 |
| 24 | NO.12-24 | 5/16",3/8"-24 | 9/16",1/16"-24 | 4 | 11.6 | 4 | 50 | 3 | 4.5 |
| 24 |
| 5/16",3/8"-24 | 9/16",1/16"-24 | 6 | 15.9 | 6 | 60 | 3 | 6.8 |
| 24 |
| 3/8"-24 | 9/16",1/16"-24 | 7.8 | 19.1 | 8 | 60 | 3 | 8.5 |
| 24 |
|
| 9/16",1/16"-24 | 11.9 | 28.6 | 12 | 75 | 4 | 13.2 |
| 20 | 1/4"-20 | 7/16", 1/2"-20 | 3/4", 1"-20 | 4 | 12.7 | 4 | 50 | 3 | 5.2 |
| 20 | 1/4"-20 | 7/16", 1/2"-20 | 3/4", 1"-20 | 4.88 | 13 | 6 | 60 | 3 | 5.2 |
| 20 |
| 7/16", 1/2"-20 | 3/4", 1"-20 | 9 | 22.9 | 10 | 75 | 4 | 9.8 |
| 20 |
| 1/2"-20 | 3/4", 1"-20 | 10 | 25.4 | 10 | 75 | 4 | 11.5 |
| 20 |
|
| 3/4", 1"-20 | 12 | 38.1 | 12 | 75 | 4 | 17.8 |
| 18 | 5/16"-18 | 9/16",5/8"-18 | 11/16",1 11/16"-18 | 5.8 | 16.9 | 6 | 60 | 3 | 6.5 |
| 18 |
| 9/16",5/8"-18 | 11/16",1 11/16"-18 | 10 | 29.6 | 10 | 75 | 4 | 12.8 |
| 18 |
| 5/8"-18 | 11/16",1 11/16"-18 | 11.9 | 32.5 | 12 | 75 | 4 | 14.5 |
| 16 | 3/8"-16 | 3/4"-16 |
| 7.6 | 19.1 | 8 | 60 | 3 | 8 |
| 16 |
| 3/4"-16 |
| 12 | 28 | 12 | 75 | 4 | 17.5 |
| 14 | 7/16"-14 | 7/8"-14 |
| 8 | 20 | 8 | 60 | 3 | 9.3 |
| 14 |
| 7/8"-14 |
| 16 | 39.9 | 16 | 100 | 4 | 20.5 |
| 13 | 1/2"-13 |
|
| 8 | 20 | 8 | 60 | 3 | 10.8 |
| 12 | 9/16"-12 | 1",1 1/2"-12 |
| 10 | 28 | 10 | 75 | 4 | 12.3 |
| 12 |
| 1",1 1/2"-12 |
| 16 | 40 | 16 | 100 | 4 | 23.5 |
| 11 | 5/8"-11 |
|
| 12 | 30 | 12 | 75 | 4 | 13.5 |
| 10 | 3/4"-10 |
|
| 12 | 30 | 12 | 75 | 4 | 16.5 |
| 9 | 7/8"-9 |
|
| 16 | 38 | 16 | 100 | 4 | 19.5 |
| 8 | 1"-8 |
|
| 16 | 40 | 16 | 100 | 4 | 22 |

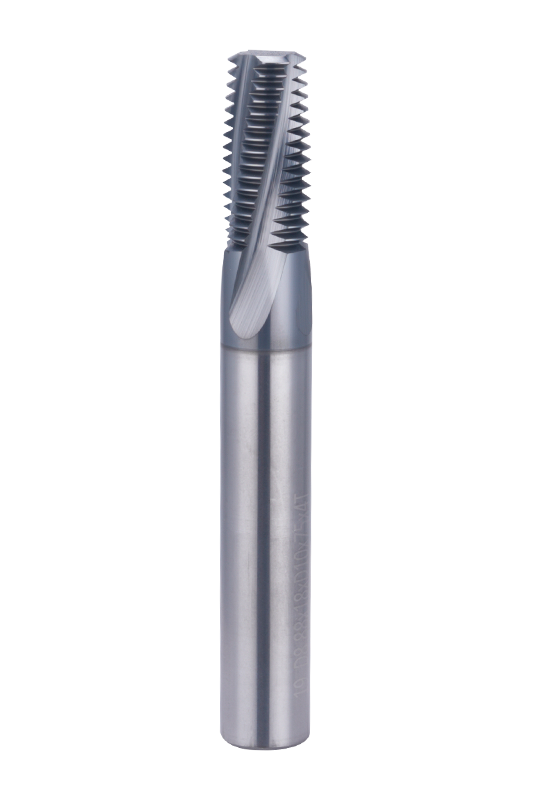

60° UN ANSI/ASME B1.1 Standard Plena Tooth Thread Milling Cutter processuum conventionalem percussionem in cavo profundo, caeco foramine et difficili materiali machinatione perficit. Efficaciter extenuat onus secans, extenuat instrumentum fracturae periculum et instrumentum vitae spatium extendit. Instrumentum specificationum convenientium eligendo, utentes stateram consequi possunt inter altae efficientiae machinationis et subtilitatis qualitatem, diversae applicationis industriae requisita occurrentes.
Productum hoc secundum ANSI/ASME B1.1 designatum est, 60° angulum filo ducens cum ore pleno dente secans quod totum stamina profile tegit. Magnam praecisionem ac constantiam in machinis sequelis praestat, varia signa sequela Unified (UNC, UNF, UNEF) tam internam quam externam pro filo milling sustinens. Aptissimum est ad machinationes applicationes quae altam accurationem et firmitatem requirunt.
Dromones cum amplis materiis compatitur, incluso chalybe carbonii, mixturae chalybis, inactae chalybis, aluminii admixti, admixti aeris, et nonnullis machinis materiatis. Eius configurationes parametri flexibiles - sicut diversae diametri dromonis (d1), scapus diametri (D), altiore longitudinum (L), et stamina specificationum - aptabilitas variis artificiis et machinis necessitatibus. Commendatur pro materiae duritia usque ad HRC 40°, ut instrumentum vitae optimae et incisionem perficiendi curet.
