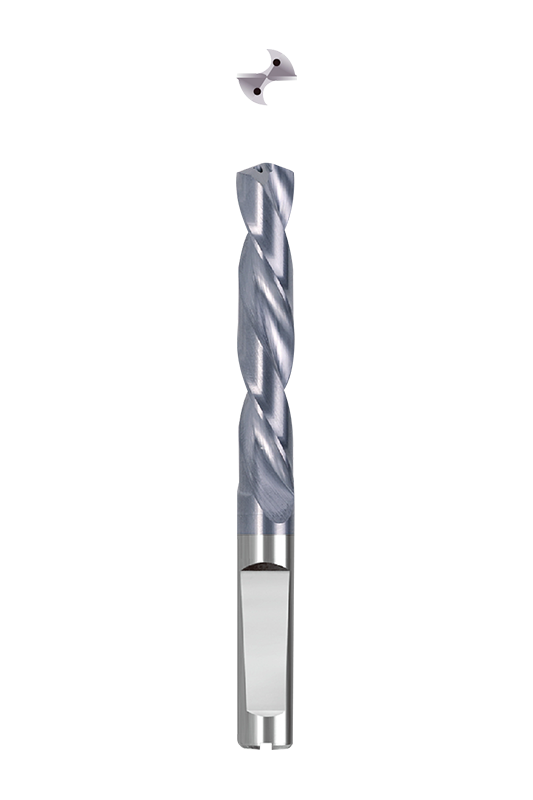

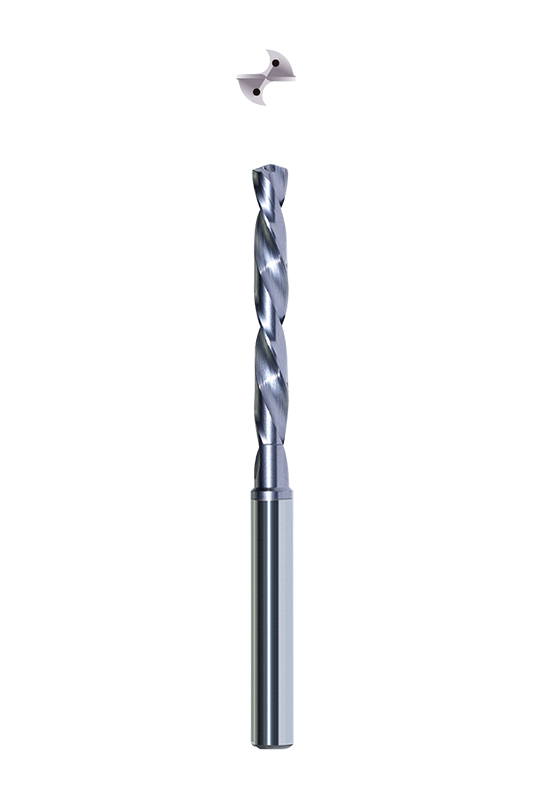

Torquent terebras pro mitis Steel et Diver

Torquent terebras pro mitis Steel et Diver

•  Electio prima ad exercendam ferrum molle et incorruptum.
•  Acuta acies, formationem constructi-oris vitat, ad alta opera exercenda apta.
•  Scapus Rectus / coneris genus scapus, internum/externum refrigerationis genus optional.

  • Torquent terebras pro mitis Steel et Diver
  • Torquent terebras pro mitis Steel et Diver
Contact Us

NNZB Series fricta Massam torquet EXERCITATIO (Internum Frigus Type) (3D/5D)

Processed Materials Mitis Steel
HB≤180 		Carbon Steel, Alloy Steel
~30HRC 		Diver
Austenitic Series Martensitic Series Series
Celeritate secans 80~150m/min 80~150m/min 40-80 m/min 50-100 m/min 60~120 m/min
Diameter
(mm) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r)
3 12700 0.09~0.12 12700 0.09~0.12 6300 0.03~0.07 7400 0.03~0.07 9000 0.03~0.07
4 9600 0.10~0.15 9600 0.10~0.15 4700 0.04~0.08 5600 0.04~0.08 6700 0.04~0.08
5 7600 0.12~0.18 7600 0.12~0.18 3800 0.05~ 0.10 4500 0.05~ 0.10 5400 0.05~ 0.10
6 6400 0.14~0.20 6400 0.14~0.20 3200 0.06~0.12 3700 0.06~0.12 4500 0.06~0.12
8 4800 0.16~0.24 4800 0.16~0.24 2400 0.08~0.16 2800 0.08~0.16 3400 0.08~0.16
10 3800 0.18~0.27 3800 0.18~0.27 1900 0.10~0.18 2200 0.10~0.18 2700 0.10~0.18
12 3200 0.20~0.30 3200 0.20~0.30 1600 0.12~0.20 1900 0.12~0.20 2300 0.12~0.20
14 2700 022~0.35 2700 0.22~0.35 1350 0.13~0.22 1600 0.13~0.22 1900 0.13~0.22
16 2400 0.25~0.36 2400 0.25~0.36 1200 0.14~0.25 1400 0.14~0.25 1700 0.14~0.25
18 2100 0.28~0.38 2100 0.28~0.38 1050 0.15~0.28 1200 0.15~0.28 1500 0.15~0.28
20 1900 0.30~0.40 1900 0.30~0.40 950 0.16~0.30 1100 0.16~0.30 1350 0.16~0.30

1. Cum primum hoc instrumento uteris, experire sectionem ad 90% velocitatis sectionis vel 85% rate cibarii secundum superius datam. Cum conditio incisio stabilis est, celeritatem secantis auge et rate singillatim pasce.
2. Mensa conditionis haec regula secans applicabilis est fluidis aqua-solubilibus incidendis.
3. Cum instrumentum asciarum inauguratum est, manca libera et nitida vitio utere, ac freni radialem runout terebrae intra 0.02mm moderare.
4. Condiciones in hac tabula secandas applicabiles sunt adiunctis ubi foramen profundum est infra 5D.
