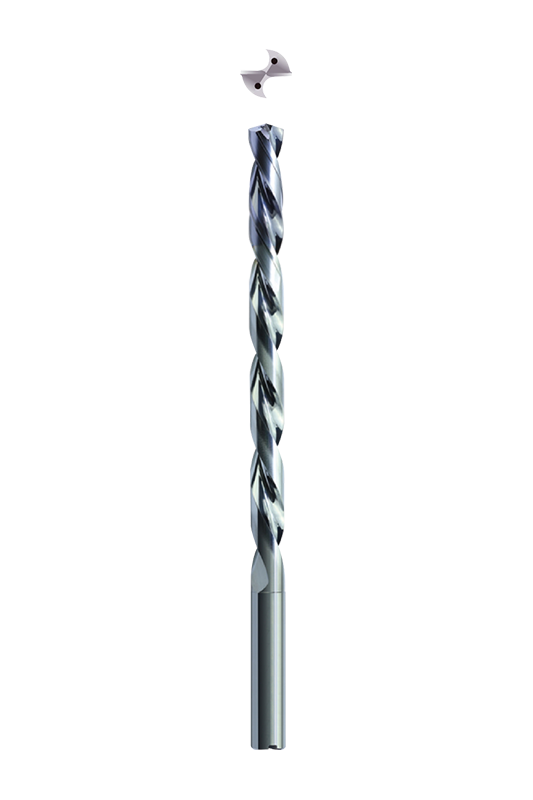

Altum foramen terebras torquent EXERCITATIO Bits

Altum foramen terebras torquent EXERCITATIO Bits

•  Apta ad artem variarum materiarum efficiendam ut ferrum, ferrum, ferrum inactum, etc.
•  Cursus directus terebra retorquens internam/externam refrigerationem.

  • Altum foramen terebras torquent EXERCITATIO Bits
Contact Us

NNSK Series Deep foramen fricta Massam torquet EXERCITATIO (Internum frigus Type) (12D)

Processed Materials Mitis Steel
HB≤180 		Carbon Steel, Alloy Steel
~30HRC 		Preharded Ferro
~40HRC 		Diver Ferrum mittite Nodular Irrum Aluminium Alloy Calor-Resistens Alloy
Celeritate secans 60~ 120m/min 60~ 120m/min 50~80m/min 40~60m/min 80~150m/min 60~ 120m/min 100~180m/min 10~20m/min
Diameter
(mm) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r)
3 10600 0.06~0.1 10600 0.06~0.1 7400 0.06~0.1 5300 0.03~0.07 12700 0.06~0.1 9500 0.06~0.1 15000 0.09~0.12 2100 0.03~0.06
4 8000 0.08~0.12 8000 0.08~0.12 5600 0.08~0.12 4000 0.04~0.08 96000 0.08~0.12 7000 0.08~0.12 11000 0.10~0.15 1600 0.04~0.07
5 6400 0.10~0.14 6400 0.10~0.14 4500 0.10~0.14 3200 0.05~ 0.10 7600 0.10~0.14 5700 0.10~0.14 9000 0.10~0.15 1250 0.05~0.9
6 5300 0.11~0.16 5300 0.11~0.16 3700 0.11~0.16 2700 0.06~0.12 6400 0.11~0.16 4700 0.11~0.16 7400 0.11~0.16 1050 0.06~0.11
8 4000 0.13~0.19 4000 0.13~0.19 2800 0.13~0.19 2000 0.08~0.16 4800 0.13~0.19 3600 0.13~0.19 5600 0.13~0.19 800 0.08~0.14
10 3200 0.14~0.22 3200 0.14~0.22 2200 0.14~0.22 1600 0.10~0.18 3800 0.14~0.22 2800 0.14~0.22 4500 0.14~0.22 600 0.10~0.16
12 2700 0.16~0.24 2700 0.16~0.24 1900 0.16~0.24 1300 0.12~0.20 3200 0.16~0.24 2400 0.16~0.24 3700 0.16~0.24 500 0.12~0.18
14 2300 0.18~0.28 2300 0.18~0.28 1600 0.18~0.28 1100 0.13~0.22 2700 0.18~0.28 2100 0.18~0.28 3200 0.18~0.28 450 0.13~0.20
16 2100 0.20~0.30 2100 0.20~0.30 1400 0.20~0.30 1050 0.14~0.25 2100 0.20~0.30 1800 0.20~0.30 2800 0.25~0.36 400 0.14~0.23
18 1800 0.22~0.32 1800 0.22~0.32 1200 0.22~0.32 950 0.15~0.28 1800 0.22~0.32 1600 0.22~0.32 2500 0.28~0.38 350 0.15~0.25
20 1600 0.25~0.35 1600 0.25~0.35 1100 0.25~0.35 800 0.16~0.30 1600 0.25~0.35 1400 0.25~0.35 2300 0.30~0.40 320 0.16~0.28


NNSK Series profunda foramen fricta Massam torquet EXERCITATIO (Internum refrigerationem Type) (20D/30D)

Processed Materials Mitis Steel
HB≤180 		Carbon Steel, Alloy Steel
~30HRC 		Preharded Ferro
~40HRC 		Diver Ferrum mittite Nodular Irrum Aluminium Alloy Calor-Resistens Alloy
Celeritate secans 70~90m/min 50~80m/min 40~60m/min 40~60m/min 50~80m/min 60~80m/min 100~180m/min 8~15m/min
Diameter
(mm) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r) 		Mobilitate gyratorio
(min -1 ) 		Pasce Rate
(mm/r)
3 8250 0.06~0.1 7650 0.06~0.1 5200 0.06~0.1 4750 0.03~0.07 7100 0.06~0.1 7600 0.06~0.1 12750 0.09~0.12 1350 0.03~0.06
4 6250 0.08~0.12 5750 0.08~0.12 3900 0.08~0.12 3600 0.04~0.08 5400 0.08~0.12 5600 0.08~0.12 9350 0.10~0.15 1050 0.04~0.07
5 5000 0.10~0.14 4600 0.10~0.14 3150 0.10~0.14 2900 0.05~ 0.10 4250 0.10~0.14 4550 0.10~0.14 7650 0.10~0.15 800 0.05~0.09
6 4150 0.11~0.16 3800 0.11~0.16 2600 0.11~0.16 2450 0.06~0.12 3600 0.11~0.16 3750 0.11~0.16 6300 0.11~0.16 700 0.06~0.11
8 3100 0.13~0.19 2900 0.13~0.19 1950 0.13~0.19 1800 0.08~0.16 2700 0.13~0.19 2900 0.13~0.19 4750 0.13~0.19 500 0.08~0.14
10 2500 0.14~0.22 2300 0.14~0.22 1550 0.14~0.22 1450 0.10~0.18 2150 0.14~0.22 2250 0.14~0.22 3850 0.14~0.22 400 0.10~0.16
12 2100 0.16~0.24 1950 0.16~0.24 1350 0.16~0.24 1150 0.12~0.20 1800 0.16~0.24 1900 0.16~0.24 3150 0.16~0.24 350 0.12~0.18
14 1800 0.18~0.28 1650 0.18~0.28 1100 0.18~0.28 1000 0.13~0.22 1500 0.18~0.28 1700 0.18~0.28 2700 0.18~0.28 300 0.13~0.20

1. Cum primum hoc instrumento uteris, experire sectionem ad 90% velocitatis sectionis vel 85% rate cibarii secundum superius datam. Cum conditio incisio stabilis est, celeritatem secantis auge et rate singillatim pasce.
2. Mensa conditionis haec regula secans applicabilis est fluidis aqua-solubilibus incidendis.
3. Cum instrumentum asciarum inauguratum est, manca libera et nitida vitio utere, ac moderare radialem runitatem terebrae intra 0.02mm..
