• Peculiare consilium cultelli, cum technologiae expolitio et passiva coniuncta, efficaciter prohibet vibrationem et problema astulae glutinandi solvit.
• Aluminium cultellum excelsum perficientur, rate remotionem metalli ultra-altam consequi potest et ad effectum speciei requisita altiora.

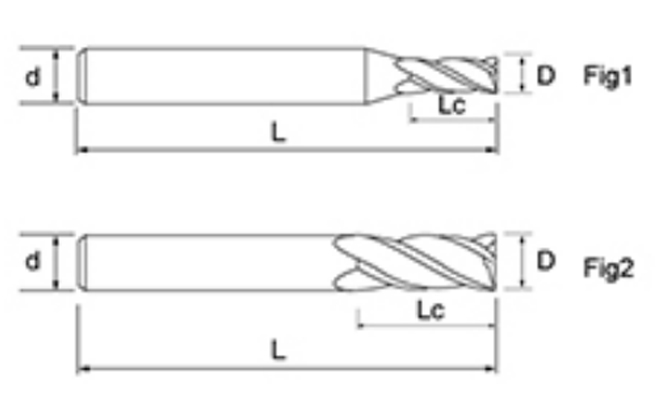

| Nec. | Diameter D | Tibia Longitud*o Lc | altiore Longitudo L | Shank Dia d | Ferrum Comitis F |
| NNL-3T-D1.0 | 1.0 | 3 | 50 | 4 | 3 |
| NNL-3T-D1.5 | 1.5 | 4 | 50 | 4 | 3 |
| NNL-3T-D2.0 | 2.0 | 6 | 50 | 4 | 3 |
| NNL-3T-D2.5 | 2.5 | 7 | 50 | 4 | 3 |
| NNL-3T-D3.0S | 3.0 | 7 | 50 | 4 | 3 |
| NNL-3T-D3.0 | 3.0 | 8 | 50 | 6 | 3 |
| NNL-3T-D4.0S | 4.0 | 12 | 50 | 4 | 3 |
| NNL-3T-D4.0 | 4.0 | 12 | 50 | 6 | 3 |
| NNL-3T-D4.5 | 4.5 | 12 | 50 | 6 | 3 |
| NNL-3T-D5.0 | 5.0 | 15 | 50 | 6 | 3 |
| NNL-3T-D5.5 | 5.5 | 15 | 50 | 6 | 3 |
| NNL-3T-D6.0 | 6.0 | 18 | 50 | 6 | 3 |
| NNL-3T-D7.0 | 7.0 | 20 | 60 | 8 | 3 |
| NNL-3T-D8.0 | 8.0 | 20 | 60 | 8 | 3 |
| NNL-3T-D9.0 | 9.0 | 25 | 75 | 10 | 3 |
| NNL-3T-D10.0 | 10.0 | 30 | 75 | 10 | 3 |
| NNL-3T-D11.0 | 11.0 | 30 | 75 | 12 | 3 |
| NNL-3T-D12.0 | 12.0 | 30 | 75 | 12 | 3 |
| NNL-3T-D14.0 | 14.0 | 35 | 75 | 14 | 3 |
| NNL-3T-D16.0 | 16.0 | 45 | 100 | 16 | 3 |
| NNL-3T-D18.0 | 18.0 | 45 | 100 | 18 | 3 |
| NNL-3T-D20.0 | 20.0 | 50 | 100 | 20 | 3 |
| Processed Materials | Aluminium Alloy | Silicon Aluminium Alloy Si≤10% | ||
| Diameter (mm) | Mobilitate gyratorio (min⁻¹) | Pascite Mobilitate (mm/min) | Mobilitate gyratorio (min⁻¹) | Pascite Mobilitate (mm/min) |
| 1 | 40000 | 800 | 40000 | 600 |
| 2 | 40000 | 1200 | 32000 | 900 |
| 3 | 26500 | 1800 | 21000 | 1300 |
| 4 | 20000 | 2000 | 16000 | 1500 |
| 5 | 16000 | 1750 | 13000 | 1300 |
| 6 | 13000 | 1500 | 10600 | 1200 |
| 8 | 10000 | 1650 | 8000 | 1300 |
| 10 | 8000 | 1900 | 6500 | 1500 |
| 12 | 6600 | 1950 | 5300 | 1550 |
| 14 | 5700 | 2000 | 4600 | 1600 |
| 16 | 5000 | 2000 | 4000 | 1600 |
| 18 | 4400 | 2000 | 3500 | 1600 |
| 20 | 4000 | 2000 | 3200 | 1600 |

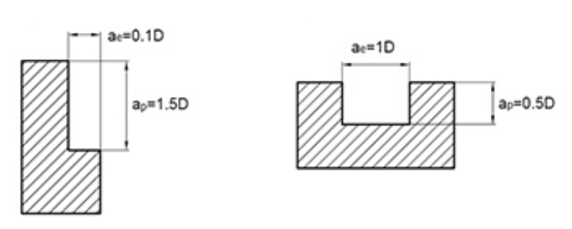

| Maximum secans profundum |  | |||
1. Mensa suprascripta fundatur in valores probationis ad latus millingendi. Condiciones pro socors milling secans fundantur 70% de rate cibariorum in mensa supra.
2. Quaeso utere instrumentorum machinarum et instrumentorum detentorum alta rigiditate et subtilitate. Cum rigiditas machinae instrumenti et operis institutionis pauper est, tremor et abnormes strepitus fieri possunt. Hoc tempore, celeritas suadeo et rate pascendi in mensa supra annum reduci debet.
3. Cum profunditas secans parva est, celeritas gyrationis et rate cibaria augeri possunt anni in annos.
4. Quaeso utere fluida solvenda aqua-soluta.
5. Latus milling pro sequentiae milling commendatur.
6. Minimize instrumentum longitudo imminentium quantum fieri potest sine impedimento.
| Instrumentum Series | Diameter | Rad*ius | Rad*ius angularis | Tibia Longitudo | Longitudo effective | altiore Longitudo | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNL Carbide End Mills pro Aluminium Machining | D0.5~D3.5 | 0 -0.012 | R0.5~R1.75 | /-0.005 | CR0.2~CR0.5 | /-0.005 | 0 0.3 | 0 0.5 | 0 0.5 | h6* |
| D4.0~D10.0 | 0 -0.015 | R2.0~ R5.0 | /-0.008 | CR1.0~CR5.0 | /-0.008 | 0 0.5 | ||||
| D12.0~D20.0 | 0 -0.018 | R6.0~ R10.0 | /-0.01 | |||||||

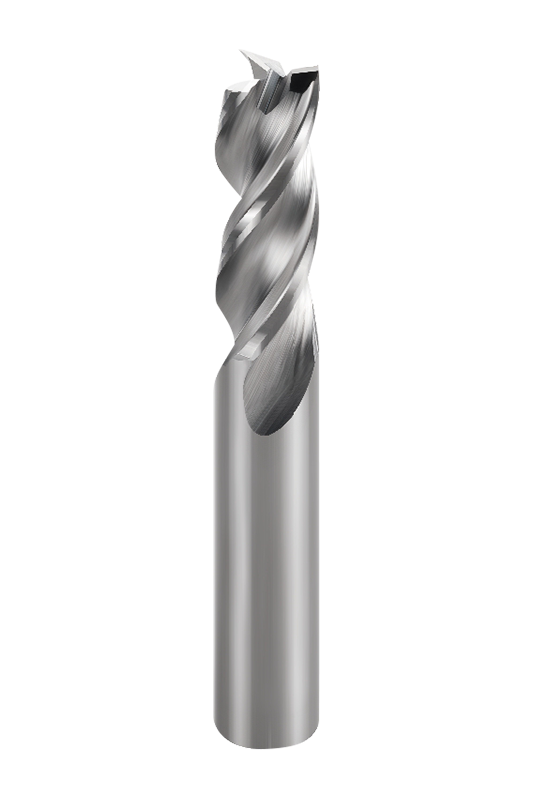

Aluminium Milling Cutters 3 Flute End Mills (NNL-3T series) varias specificationum offerunt, diametris scalptoribus ab 1.0mm usque ad 20.0mm vagantibus, et variae optiones pro longitudinis dromonis et scapus diametri ad diversas machinas necessitates accommodandas. Utrum ad subtilitatem sculpturae vel amplitudinis materialis remotionis, exemplar congruum inveniri potest ut obviam flexibilitati requisitis machinis efficientis.
Instrumentum notat unicum consilium trium tibiarum cum angulo 45° spirali coniunctum, optimizing vis secantis distributionis et efficaciter reducendo in machinis vibrationem, machinis stabilitatem augendo. Praecipuum instrumentum geometriae auget facultatem chip remotionis, adhaesionem minuendi chips quaestiones in processu et levius sequendo, servato praecipuo qualitatis superficiei fine.
Facto ex alta 0.5μm duritie, anti detractione materiae, ac subtiliter stridor et processuum expolitionis et passivationis tractatus, instrumentum superficiei levius fit, minuendo resistentiam et diuturnitatem instrumentum augendi. Notae frictionis humilis, cum machinis alta subtilitate coniuncta, instrumentum permittit ut in operationibus summae velocitatis exercendis optimam conservationem servet..
