• Summus durities et arduitas substrata fabricandi, specialis angulus negativus, processus materialis ante et post curatio caloris, universalis pro materiis tam mollibus quam duris.
• Adhiberi possunt ad CNC processus sub condiciones altae celeritatis, nebulae olei, aquae refrigerationis, olei refrigerationis et aliorum ambituum refrigerationis culturae..

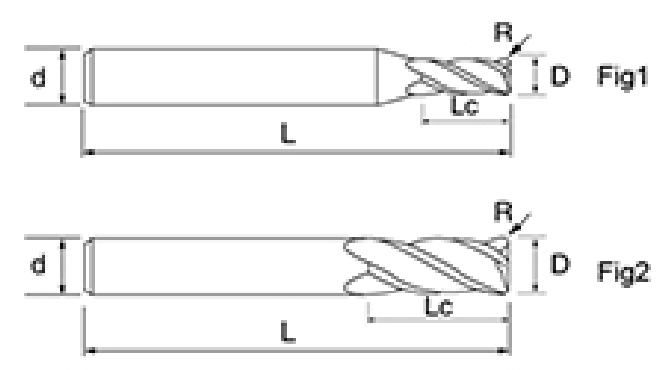

| Nec. | Diameter D | R Anglus R | Tibia Longitud*o Lc | altiore Longitudo L | Shank Dia d | Ferrum Comitis F |
| NNH-4R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 4 | 4 |
| NNH-4R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 6 | 4 |
| NNH-4R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 4 | 4 |
| NNH-4R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 6 | 4 |
| NNH-4R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 4 | 4 |
| NNH-4R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 6 | 4 |
| NNH-4R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 4 | 4 |
| NNH-4R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 6 | 4 |
| NNH-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 3 | 4 |
| NNH-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 4 | 4 |
| NNH-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 6 | 4 |
| NNH-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 3 | 4 |
| NNH-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 4 | 4 |
| NNH-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 6 | 4 |
| NNH-4R-D4-R0.2 | 4 | 0.2 | 8 | 50 | 4 | 4 |
| NNH-4R-D4-R0.2 | 4 | 0.2 | 8 | 75 | 4 | 4 |
| NNH-4R-D4-R0.2 | 4 | 0.2 | 8 | 50 | 6 | 4 |
| NNH-4R-D4-R0.5 | 4 | 0.5 | 8 | 50 | 4 | 4 |
| NNH-4R-D4-R0.5 | 4 | 0.5 | 8 | 75 | 4 | 4 |
| NNH-4R-D4-R0.5 | 4 | 0.5 | 8 | 50 | 6 | 4 |
| NNH-4R-D4-R1 | 4 | 1 | 8 | 50 | 4 | 4 |
| NNH-4R-D4-R1 | 4 | 1 | 8 | 50 | 6 | 4 |
| NNH-4R-D5-R0.5 | 5 | 0.5 | 10 | 50 | 5 | 4 |
| NNH-4R-D5-R0.5 | 5 | 0.5 | 10 | 50 | 6 | 4 |
| NNH-4R-D5-R1 | 5 | 1 | 10 | 50 | 5 | 4 |
| NNH-4R-D5-R1 | 5 | 1 | 10 | 50 | 6 | 4 |
| NNH-4R-D6-R0.2 | 6 | 0.2 | 12 | 50 | 6 | 4 |
| NNH-4R-D6-R0.2 | 6 | 0.2 | 12 | 75 | 6 | 4 |
| NNH-4R-D6-R0.2 | 6 | 0.2 | 12 | 100 | 6 | 4 |
| NNH-4R-D6-R0.5 | 6 | 0.5 | 12 | 50 | 6 | 4 |
| NNH-4R-D6-R0.5 | 6 | 0.5 | 12 | 75 | 6 | 4 |
| NNH-4R-D6-R0.5 | 6 | 0.5 | 12 | 100 | 6 | 4 |
| NNH-4R-D6-R1 | 6 | 1 | 12 | 50 | 6 | 4 |
| NNH-4R-D8-R0.2 | 8 | 0.2 | 16 | 60 | 8 | 4 |
| NNH-4R-D8-R0.2 | 8 | 0.2 | 16 | 75 | 8 | 4 |
| NNH-4R-D8-R0.2 | 8 | 0.2 | 16 | 100 | 8 | 4 |
| NNH-4R-D8-R0.5 | 8 | 0.5 | 16 | 60 | 8 | 4 |
| NNH-4R-D8-R0.5 | 8 | 0.5 | 16 | 75 | 8 | 4 |
| NNH-4R-D8-R0.5 | 8 | 0.5 | 16 | 100 | 8 | 4 |
| NNH-4R-D8-R1 | 8 | 1 | 16 | 60 | 8 | 4 |
| NNH-4R-D10-R0.2 | 10 | 0.2 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R0.2 | 10 | 0.2 | 20 | 100 | 10 | 4 |
| NNH-4R-D10-R0.3 | 10 | 0.3 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R0.5 | 10 | 0.5 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R0.5 | 10 | 0.5 | 20 | 100 | 10 | 4 |
| NNH-4R-D10-R1 | 10 | 1 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R1.5 | 10 | 1.5 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R2 | 10 | 2 | 20 | 75 | 10 | 4 |
| NNH-4R-D12-R0.5 | 12 | 0.2 | 24 | 75 | 12 | 4 |
| NNH-4R-D12-R0.5 | 12 | 0.2 | 24 | 100 | 12 | 4 |
| NNH-4R-D12-R0.5 | 12 | 0.5 | 24 | 75 | 12 | 4 |
| NNH-4R-D12-R0.5 | 12 | 0.5 | 24 | 100 | 12 | 4 |
| NNH-4R-D12-R1 | 12 | 1 | 24 | 75 | 12 | 4 |
| NNH-4R-D12-R2 | 12 | 2 | 24 | 75 | 12 | 4 |
| NNH-4R-D12-R3 | 12 | 3 | 24 | 75 | 12 | 4 |
| NNH-4R-D16-R1 | 16 | 1 | 35 | 100 | 16 | 4 |
| NNH-4R-D16-R2 | 16 | 2 | 35 | 100 | 16 | 4 |
| NNH-4R-D16-R3 | 16 | 3 | 35 | 100 | 16 | 4 |
| NNH-4R-D20-R1 | 20 | 1 | 40 | 100 | 20 | 4 |
| NNH-4R-D20-R2 | 20 | 2 | 40 | 100 | 20 | 4 |
| NNH-4R-D20-R3 | 20 | 3 | 40 | 100 | 20 | 4 |
| Processed Materials | Pre-Harded Steel 40~50HRC | Obduratus Steel 50~60HRC | Obduratus Steel 60~ 68HRC | |||
| Celeritate secans | 300m/min | 150m/min | 100m/min | |||
| Diameter (mm) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) |
| 3 | 32000 | 1225 | 16000 | 610 | 11000 | 420 |
| 4 | 24000 | 1500 | 12000 | 745 | 8000 | 500 |
| 5 | 19000 | 1630 | 9500 | 815 | 6400 | 550 |
| 6 | 16000 | 1850 | 8000 | 925 | 5300 | 610 |
| 8 | 12000 | 1850 | 6000 | 925 | 4000 | 610 |
| 10 | 9600 | 1850 | 4800 | 925 | 3200 | 610 |
| 12 | 8000 | 1920 | 4000 | 960 | 2700 | 648 |
| 16 | 6000 | 1440 | 3000 | 720 | 2000 | 480 |

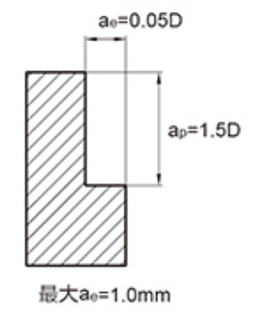

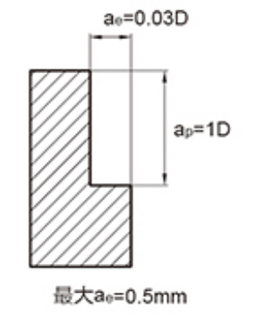

| Maximum secans profundum |  |  |  | |||
1. Quaeso utere summus exquisite et excelsus rigor armorum et adfixa.
2. Cum rigiditas machinae instrumenti et operis institutionis pauper est, vibratio et abnormis sonus fieri potest. Hoc in casu, celeritas et rate in mensa supra cibaria reduci debent anni in annos.
3. Commodo utere refrigerationem aeris vel MQL (minuta copia olei caliginis refrigerantis).
4. Commendatur ut sequentiales mills pro parte millsurarum.
5. Minimize instrumentum suspensionis longitudinem quam maxime sine impedimento.
| Instrumentum Series | Diameter | Rad*ius | Rad*ius angularis | Tibia longitudo | Longitudo efficax | Longitudo altiore | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNH Casio et duritia Carbide finis Mills | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

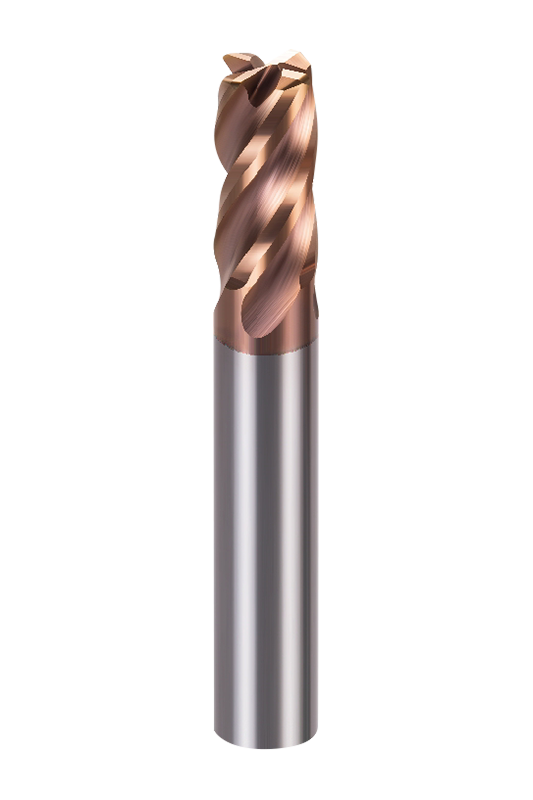

NNH-4R princeps effectus 4 tibiae circum nasi finis molendina varietatem specificationum et magnitudinum praebet, quae molliter componi possunt secundum varias processus exigentias ad formandum sub-exemplares correspondentes ad varias applicationes missionum occurrendas. Utrum parva praecisio partium sit processus vel efficiens incisiones magnarum amplitudinis officinarum, libere eligere potes instrumentum convenientem magnitudinis, ratione efficientiae et stabilitatis.
Peculiaris eius structura rotunditas nasi cum quadri-ore consilio coniuncta efficaciter secans onus dispergit et tremorem ac instrumentum gerunt. Haec figura stabiliorem incisionem environment in magna celeritate milling efficere potest, quae maxime apta est ad processum exigentias altae duritiei materiae. Cutis rotundus nasus caput etiam superficies perficiendi ac dimensionis accurate in semi-finitione et finitione efficere potest.
In progressu technologiae technologiae ac subtilitate stridor processu provecta, instrumentum duritiae et excellentiae indumentorum resistentiae obtinuit. Coniunctio summus perficientur AlTiSiN coating et (0.4µm) particulae ultra-subiectae permittit ut diuturnam servitutem servet in vita caliditas et celeritas in ambitu scindendi, et stabilis observantiam et praecisionem in dispensando conservat. Qualitas stricta moderatio et processus fabricandi summus praecisio, firmam exsecutionem instrumenti sub conditionibus duris obtineat.
NNH-4R princeps effectus 4 tibia rotunda nasi finis molendina apta est ad expediendas materias varias, in iis summus durities chalybs, mixtura chalybs, ferrum fingunt et chalybs immaculata. In summa celeritate applicationes milling, altae duritiae et caloris resistentiae, auxilium obtinent acumen et stabilitatem herbae, efficientiam melioris productionis et servitutem vitae instrumenti extendunt..
Enterprise constitutionis
Employees
Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are Princeps euismod IV Flute circa nasum finem Mills Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional Princeps euismod IV Flute circa nasum finem Mills Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
Respondebimus tibi intra XII horas post inquisitionem in feriis acceptis.
Fabricatores sumus, nosmet ipsos facimus et vendimus.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional Princeps euismod IV Flute circa nasum finem Mills Manufacturers.
Producti nostri totam fere formam industriam, defensionem industriam, aerospace industriam, autocineticam industriam, electronic productos aliosque campos prope tegunt.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom High Performance 4 Flute Round Nose End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are Princeps euismod IV Flute circa nasum finem Mills Company
Uno modo post quamlibet processum, inspectiones debitas peragimus. Pro producto finali, C% plenam inspectionem secundum exigentias mos et signa internationalia agemus;
Deinde habemus provectiorem et integram summa incisura armorum probationem in industria, ut analysres spectralis, microscopia metallographica, etc., quae stabilitatem et constantiam instrumentorum incisionis efficere possunt, dum alta praecisio probatio elit occurrens ad instrumenta secanda requisita.
Cum commemoramus, methodum transactionem apud te confirmabimus, FOB, CIF, CNF vel alia optiones. Cum mole producendo, antecedens solutionem facere solemus primum 30%, deinde reliquam stateram in praesentatione rogationis oneris solvemus. Plerumque T/T uti methodo solutionis utimur, sed L/C etiam gratum est.
We are Princeps euismod IV Flute circa nasum finem Mills Manufacturers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
