• Summus durities et arduitas substrata fabricandi, specialis angulus negativus, processus materialis ante et post curatio caloris, universalis pro materiis tam mollibus quam duris.
• Adhiberi possunt ad CNC processus sub condiciones altae celeritatis, nebulae olei, aquae refrigerationis, olei refrigerationis et aliorum ambituum refrigerationis culturae..

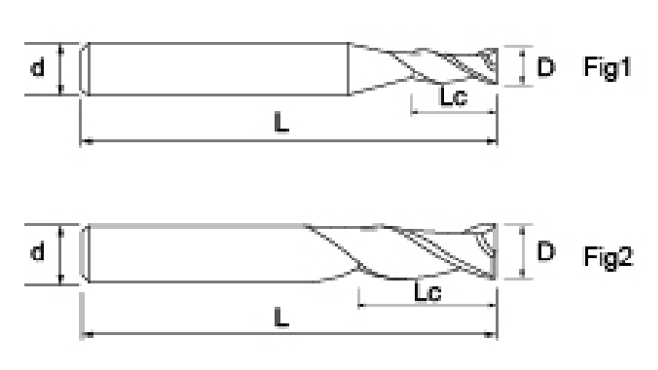

| Nec. | Diameter D | Tibia Longitud*o Lc | altiore Longitudo L | Shank Dia d | Ferrum Comitis F |
| NNH-2T-D1 | 1 | 3 | 50 | 4 | 2 |
| NNH-2T-D1 | 1 | 3 | 50 | 6 | 2 |
| NNH-2T-D1.5 | 1.5 | 4 | 50 | 4 | 2 |
| NNH-2T-D1.5 | 1.5 | 4 | 50 | 6 | 2 |
| NNH-2T-D2 | 2 | 6 | 50 | 4 | 2 |
| NNH-2T-D2 | 2 | 6 | 50 | 6 | 2 |
| NNH-2T-D2.5 | 2.5 | 6 | 50 | 4 | 2 |
| NNH-2T-D2.5 | 2.5 | 6 | 50 | 6 | 2 |
| NNH-2T-D3 | 3 | 8 | 50 | 4 | 2 |
| NNH-2T-D3 | 3 | 8 | 50 | 6 | 2 |
| NNH-2T-D3 | 3 | 8 | 50 | 3 | 2 |
| NNH-2T-D3.5 | 3.5 | 10 | 50 | 4 | 2 |
| NNH-2T-D3.5 | 3.5 | 10 | 50 | 6 | 2 |
| NNH-2T-D4 | 4 | 10 | 50 | 4 | 2 |
| NNH-2T-D4 | 4 | 10 | 50 | 6 | 2 |
| NNH-2T-D5 | 5 | 13 | 50 | 5 | 2 |
| NNH-2T-D5 | 5 | 13 | 50 | 6 | 2 |
| NNH-2T-D6 | 6 | 15 | 50 | 6 | 2 |
| NNH-2T-D8 | 8 | 20 | 60 | 8 | 2 |
| NNH-2T-D10 | 10 | 25 | 75 | 10 | 2 |
| NNH-2T-D12 | 12 | 30 | 75 | 12 | 2 |
| NNH-2T-D16 | 16 | 45 | 100 | 16 | 2 |
| NNH-2T-D20 | 20 | 45 | 100 | 20 | 2 |
| Processed Materials | Pre-Harded Steel 40~50HRC | Obduratus Steel 50~60HRC | Obduratus Steel 60~ 68HRC | |||
| Diameter (mm) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) |
| 1 | 40000 | 160 | 40000 | 160 | 32000 | 130 |
| 2 | 40000 | 400 | 24000 | 240 | 16000 | 160 |
| 3 | 32000 | 510 | 16000 | 255 | 11000 | 175 |
| 4 | 24000 | 625 | 12000 | 310 | 8000 | 210 |
| 5 | 19000 | 685 | 9500 | 340 | 6400 | 230 |
| 6 | 16000 | 770 | 8000 | 385 | 5300 | 255 |
| 8 | 12000 | 770 | 6000 | 385 | 4000 | 255 |
| 10 | 9600 | 770 | 4800 | 385 | 3200 | 255 |
| 12 | 8000 | 800 | 4000 | 400 | 2700 | 270 |
| 14 | 6800 | 680 | 3400 | 340 | 2300 | 230 |
| 16 | 6000 | 600 | 3000 | 300 | 2000 | 200 |
| 18 | 5300 | 530 | 2700 | 270 | 1800 | 180 |
| 20 | 4800 | 480 | 2400 | 240 | 1600 | 160 |

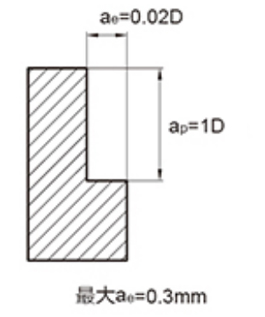

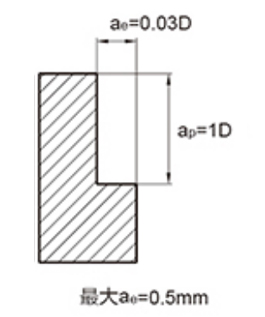

| Maximum secans profundum |  |  |  | |||
1. Quaeso utere summus exquisite et excelsus rigor armorum et adfixa.
2. Cum rigiditas machinae instrumenti et operis institutionis pauper est, vibratio et abnormis sonus fieri potest. Hoc in casu, celeritas et rate cibaria in mensa supra annum reduci debent.
3. Commodo utere refrigerationem aeris vel MQL (minuta copia olei caliginis refrigerantis).
4. Commendatur ut sequentiales mills pro parte millsurarum.
5. Minimize instrumentum suspensionis longitudinem quam maxime sine impedimento.
| Instrumentum Series | Diameter | Rad*ius | Rad*ius angularis | Tibia longitudo | Longitudo efficax | Longitudo altiore | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNH Casio et duritia Carbide finis Mills | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

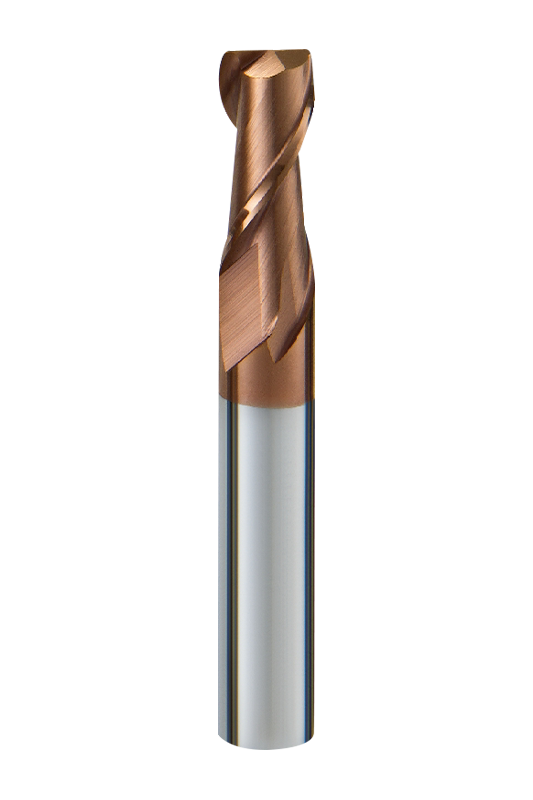

NNH-2T princeps effectus 2 tibiae finis plani molendina varias species praebet, cum diametris instrumentis ab 1mm ad 20mm vagantibus. Cum diversis longitudinibus laminarum et diametrorum scapus, potest flexibiliter variis processui necessitatibus accommodare. Dives eius configuratione sub-exemplar dat utentes utentes eligere aptissimum instrumentum secundum specifica applicatione missionum ad meliorem processui efficientiam et praecisionem.
Molendinarius dromonem specialem 2 tibiae finem plani designat, cum 35° angulo helix coniunctum, quod sinit habere simul efficientem detractionem ac stabilitatem sectionis effectuum habere. Imo dromonis capitis plani consilium efficit planitiem fundi superficies processus, quae apta est ad processui necessariae accurationis.
In processu fabricando, NNH-2T summus effectus 2 tibiae finis plani molendinorum utitur technologiam promovendo AlTiSiN efficiens, coniuncta cum 0.4μm particula ultra-subiecta subiecta, ut efficaciter indumentum resistentiae et caliditatis instrumenti stabilitas emendare possit. Excelsa duritia HRC 55 instrumentum praebet ut optimam observantiam sub alta celeritate incisionis condicionum servet, dum vitam suam extendit et postea gratuita minuit..
