• Celsitudo duritiei subiecta est cum tunica operandi summus, praesertim apta ad processui ferro praedurato.
• Positivum angulus aciei designatio minimizet chip resistentia et speciem meliorem efficit.

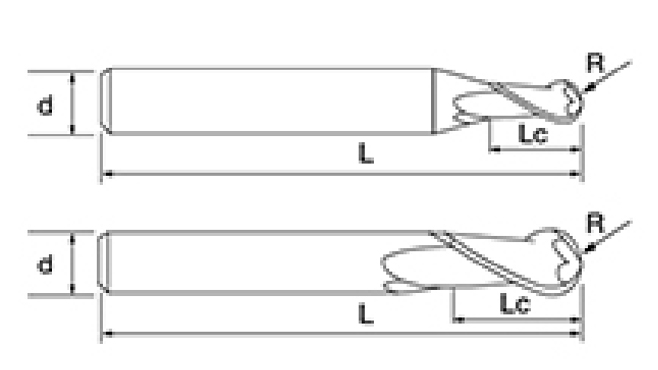

| Nec. | Diameter D | R Anglus R | Tibia Longitud*o Lc | altiore Longitudo L | Shank Dia d | Ferrum Comitis F |
| NNH-2B-D1 | 1 | 0.5 | 2 | 50 | 4 | 2 |
| NNH-2B-D1 | 1 | 0.5 | 2 | 50 | 6 | 2 |
| NNH-2B-D1.5 | 1.5 | 0.75 | 3 | 50 | 4 | 2 |
| NNH-2B-D1.5 | 1.5 | 0.75 | 3 | 50 | 6 | 2 |
| NNH-2B-D2 | 2 | 1 | 4 | 50 | 4 | 2 |
| NNH-2B-D2 | 2 | 1 | 4 | 50 | 6 | 2 |
| NNH-2B-D2.5 | 2.5 | 1.25 | 5 | 50 | 4 | 2 |
| NNH-2B-D2.5 | 2.5 | 1.25 | 5 | 50 | 6 | 2 |
| NNH-2B-D3 | 3 | 1.5 | 6 | 50 | 3 | 2 |
| NNH-2B-D3 | 3 | 1.5 | 6 | 50 | 4 | 2 |
| NNH-2B-D3 | 3 | 1.5 | 6 | 50 | 6 | 2 |
| NNH-2B-D3.5 | 3.5 | 1.75 | 8 | 50 | 4 | 2 |
| NNH-2B-D3.5 | 3.5 | 1.75 | 8 | 50 | 6 | 2 |
| NNH-2B-D4 | 4 | 2 | 8 | 50 | 4 | 2 |
| NNH-2B-D4 | 4 | 2 | 8 | 50 | 6 | 2 |
| NNH-2B-D4 | 4 | 2 | 8 | 75 | 4 | 2 |
| NNH-2B-D4 | 4 | 2 | 8 | 100 | 4 | 2 |
| NNH-2B-D5 | 5 | 2.5 | 9 | 50 | 5 | 2 |
| NNH-2B-D5 | 5 | 2.5 | 9 | 50 | 6 | 2 |
| NNH-2B-D6 | 6 | 3 | 9 | 50 | 6 | 2 |
| NNH-2B-D6 | 6 | 3 | 9 | 75 | 6 | 2 |
| NNH-2B-D6 | 6 | 3 | 9 | 100 | 6 | 2 |
| NNH-2B-D8 | 8 | 4 | 12 | 60 | 8 | 2 |
| NNH-2B-D8 | 8 | 4 | 12 | 75 | 8 | 2 |
| NNH-2B-D8 | 8 | 4 | 12 | 100 | 8 | 2 |
| NNH-2B-D10 | 10 | 5 | 15 | 75 | 10 | 2 |
| NNH-2B-D10 | 10 | 5 | 15 | 100 | 10 | 2 |
| NNH-2B-D12 | 12 | 6 | 18 | 75 | 12 | 2 |
| NNH-2B-D12 | 12 | 6 | 18 | 100 | 12 | 2 |
| NNH-2B-D16 | 16 | 8 | 25 | 100 | 16 | 2 |
| NNH-2B-D20 | 20 | 10 | 30 | 100 | 20 | 2 |
| Processed Materials | Pre-Harded Steel 40~50HRC | Obduratus Steel 50~60HRC | Obduratus Steel 60~ 68HRC | |||||||||
| Ball Caput Radius (mm) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | a p (mm) | a e (mm) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | a p (mm) | a e (mm) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | a p (mm) | a e (mm) |
| R0.5 | 40000 | 1900 | 0.01 | 0.05 | 36000 | 1500 | 0.01 | 0.05 | 32000 | 1400 | 0.01 | 0.05 |
| R1.0 | 33000 | 3100 | 0.02 | 0.075 | 26000 | 2100 | 0.02 | 0.075 | 24000 | 2000 | 0.02 | 0.075 |
| R1.5 | 29000 | 4100 | 0.03 | 0.1 | 23000 | 2900 | 0.03 | 0.1 | 21000 | 2600 | 0.03 | 0.1 |
| R2.0 | 22000 | 3900 | 0.04 | 0.15 | 17000 | 2500 | 0.04 | 0.15 | 15500 | 2100 | 0.04 | 0.15 |
| R2.5 | 17500 | 3500 | 0.05 | 0.15 | 13500 | 2200 | 0.05 | 0.15 | 13000 | 2000 | 0.05 | 0.15 |
| R3.0 | 15000 | 3100 | 0.06 | 0.2 | 11500 | 1700 | 0.06 | 0.2 | 10500 | 1500 | 0.06 | 0.2 |
| R4.0 | 11000 | 2500 | 0.08 | 0.25 | 8600 | 1600 | 0.08 | 0.25 | 8000 | 1400 | 0.08 | 0.25 |
| R5.0 | 9000 | 2000 | 0.1 | 0.3 | 7000 | 1400 | 0.1 | 0.3 | 6000 | 1200 | 0.1 | 0.3 |
| R6.0 | 7500 | 1800 | 0.1 | 0.35 | 5700 | 1300 | 0.1 | 0.35 | 5300 | 1200 | 0.1 | 0.35 |
| R8.0 | 5500 | 1800 | 0.1 | 0.4 | 4300 | 1300 | 0.1 | 0.4 | 4000 | 1200 | 0.1 | 0.4 |
| R10.0 | 4500 | 1800 | 0.1 | 0.5 | 3500 | 1300 | 0.1 | 0.5 | 3200 | 1200 | 0.1 | 0.5 |
| Maximum secans profundum |  | |||||||||||
1. Quaeso utere summus exquisite et excelsus rigor armorum et adfixa.
2. Cum rigiditas machinae instrumenti et operis institutionis pauper est, vibratio et abnormis sonus fieri potest. Hoc in casu, celeritas et rate cibaria in mensa supra annum reduci debent.
3. Commodo utere refrigerationem aeris vel MQL (minuta copia olei caliginis refrigerantis).
4. Commendatur ut sequentiales mills pro parte millsurarum.
5. Minimize instrumentum suspensionis longitudinem quam maxime sine impedimento.
| Instrumentum Series | Diameter | Rad*ius | Rad*ius angularis | Tibia longitudo | Longitudo efficax | Longitudo altiore | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNH Casio et duritia Carbide finis Mills | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

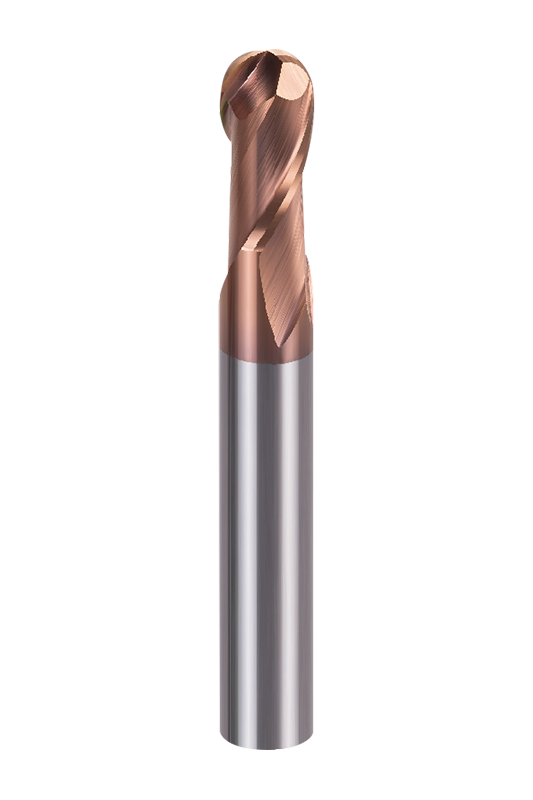

NNH-2B summus perficientur globus nasus 2-tibiae finis molendini series in variis speciebus praesto est, ab 1mm ad 20mm diametro vndique. Haec flexibilitas dat utentes utentes eligere aptissimum instrumentum ad machinis requisitis, sive pro fine sculptura sive profunda cavitatis milling. Quaelibet variantia diligenter optimized est cum longi- tudine tibiarum et altioribus dimensionibus ut accuratius et efficaciam in variis applicationibus obtineant.
Geometria nasi globo designata, hoc molendinum finis leniorem transitum praebet in 3D superficiei machinatio ad plana nasum lignarios mills comparata. Haec figura adiuvat repugnantiam minuere et instrumentum stabilitatis emendare. Helix 30° angulus angulus emissus evacuationem auget dum vibrationem extenuando stabilis machinis obtinet effectum. Praeterea, 2-tibiae compages melius concedit detractionem chippis in alta velocitate machinis, faciens illud specimen ad materiam remotionem efficientis.
This product uses advanced AlTiSiN coating technology, paired with a substrate with ultra-fine particles (0.4μm). Hoc signanter melius gerunt et calor resistit, permittens instrumentum ad servandum effectum etiam in applicationibus machinis alta duritia. NNH-2B finis molendinorum ex carbide altae duritiei sunt et praecisio- fundi ad margines incidendi acutos obtinendos, quae vires secandas minuere et accurate machinis emendare possunt.
Series NNH-2B apta est ad amplis materiis amplis et bene in applicationibus altae velocitatis et duritiae facit. Optime facit ad machinam chalybem induratum, ferramentum ferrarium, chalybem immaculatum usque ad 55HRC. Praeterea etiam efficacissima est ad exquisita metallorum non-ferrorum metallorum machinamenta, sicut admixtiones aeris.
