• Summus durities et arduitas substrata fabricandi, specialis angulus negativus, processus materialis ante et post curatio caloris, universalis pro materiis tam mollibus quam duris.
• Adhiberi possunt ad CNC processus sub condiciones altae celeritatis, nebulae olei, aquae refrigerationis, olei refrigerationis et aliorum ambituum refrigerationis culturae..

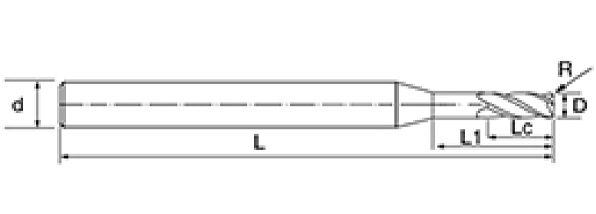

| Nec. | Diameter D | R Anglus R | Tibia Longitud*o Lc | Longitudo effective L1 | altiore Longitudo L | Shank Dia d | Ferrum Comitis F |
| NNH-4RSP-D1-L3 | 1 | 0.1 | 1 | 3 | 50 | 4 | 4 |
| NNH-4RSP-D1-L4 | 1 | 0.1 | 1 | 4 | 50 | 4 | 4 |
| NNH-4RSP-D1-L6 | 1 | 0.1 | 1 | 6 | 50 | 4 | 4 |
| NNH-4RSP-D1-L8 | 1 | 0.1 | 1 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D1-L3 | 1 | 0.2 | 1 | 3 | 50 | 4 | 4 |
| NNH-4RSP-D1-L4 | 1 | 0.2 | 1 | 4 | 50 | 4 | 4 |
| NNH-4RSP-D1-L6 | 1 | 0.2 | 1 | 6 | 50 | 4 | 4 |
| NNH-4RSP-D1-L8 | 1 | 0.2 | 1 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D1-L10 | 1 | 0.2 | 1 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D1-L12 | 1 | 0.2 | 1 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D1-L14 | 1 | 0.2 | 1 | 14 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L6 | 1.5 | 0.1 | 1.5 | 6 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L8 | 1.5 | 0.1 | 1.5 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L10 | 1.5 | 0.1 | 1.5 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L12 | 1.5 | 0.1 | 1.5 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L6 | 1.5 | 0.2 | 1.5 | 6 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L8 | 1.5 | 0.2 | 1.5 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L10 | 1.5 | 0.2 | 1.5 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L12 | 1.5 | 0.2 | 1.5 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L16 | 1.5 | 0.2 | 1.5 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D2-L8 | 2 | 0.1 | 2 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D2-L10 | 2 | 0.1 | 2 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D2-L12 | 2 | 0.1 | 2 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D2-L8 | 2 | 0.2 | 2 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D2-L10 | 2 | 0.2 | 2 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D2-L12 | 2 | 0.2 | 2 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D2-L16 | 2 | 0.2 | 2 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D2-L18 | 2 | 0.2 | 2 | 18 | 50 | 4 | 4 |
| NNH-4RSP-D2-L20 | 2 | 0.2 | 2 | 20 | 50 | 4 | 4 |
| NNH-4RSP-D2-L8 | 2 | 0.5 | 2 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D2-L10 | 2 | 0.5 | 2 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D2-L12 | 2 | 0.5 | 2 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D2-L16 | 2 | 0.5 | 2 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L10 | 3 | 0.1 | 3 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D3-L12 | 3 | 0.1 | 3 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D3-L16 | 3 | 0.1 | 3 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L10 | 3 | 0.2 | 3 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D3-L12 | 3 | 0.2 | 3 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D3-L16 | 3 | 0.2 | 3 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 60 | 6 | 4 |
| NNH-4RSP-D3-L25 | 3 | 0.2 | 3 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D3-L10 | 3 | 0.3 | 3 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D3-L12 | 3 | 0.3 | 3 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D3-L16 | 3 | 0.3 | 3 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L10 | 3 | 0.5 | 3 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D3-L12 | 3 | 0.5 | 3 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D3-L16 | 3 | 0.5 | 3 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L25 | 3 | 0.5 | 3 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D4-L12 | 4 | 0.2 | 4 | 12 | 50 | 6 | 4 |
| NNH-4RSP-D4-L16 | 4 | 0.2 | 4 | 16 | 50 | 6 | 4 |
| NNH-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 60 | 6 | 4 |
| NNH-4RSP-D4-L25 | 4 | 0.2 | 4 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D4-L35 | 4 | 0.2 | 4 | 35 | 75 | 6 | 4 |
| NNH-4RSP-D4-L12 | 4 | 0.3 | 4 | 12 | 50 | 6 | 4 |
| NNH-4RSP-D4-L16 | 4 | 0.3 | 4 | 16 | 50 | 6 | 4 |
| NNH-4RSP-D4-L20 | 4 | 0.3 | 4 | 20 | 60 | 6 | 4 |
| NNH-4RSP-D4-L25 | 4 | 0.3 | 4 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D4-L30 | 4 | 0.3 | 4 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D4-L35 | 4 | 0.3 | 4 | 35 | 75 | 6 | 4 |
| NNH-4RSP-D4-L12 | 4 | 0.5 | 4 | 12 | 50 | 6 | 4 |
| NNH-4RSP-D4-L16 | 4 | 0.5 | 4 | 16 | 50 | 6 | 4 |
| NNH-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 60 | 6 | 4 |
| NNH-4RSP-D4-L25 | 4 | 0.5 | 4 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D4-L35 | 4 | 0.5 | 4 | 35 | 75 | 6 | 4 |
| Instrumentum Series | Diameter | Rad*ius | Rad*ius angularis | Tibia longitudo | Longitudo efficax | Longitudo altiore | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNH Casio et duritia Carbide finis Mills | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

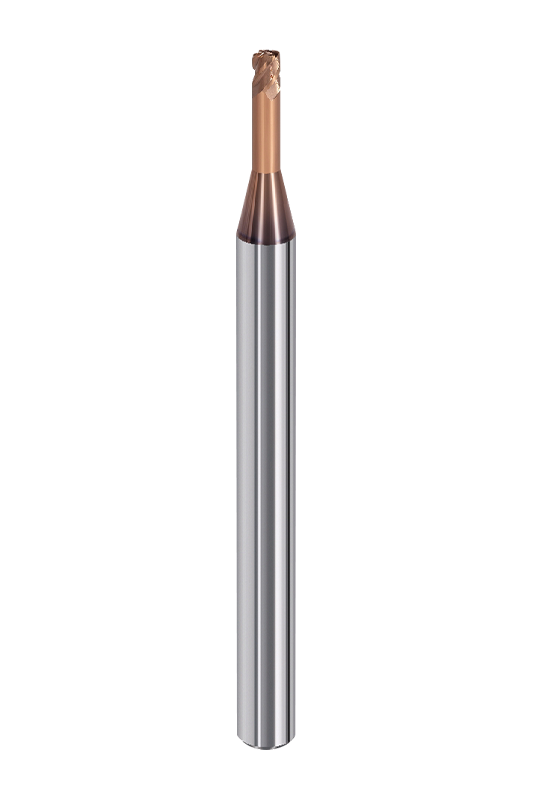

NNH-4RSP 4 fistulae altae velocitatis sulcus rotundi nasi extremitates molendinorum in variis magnitudinibus praesto sunt, ab 1mm ad 4mm diametro, cum variis longi- tudines et limbi juncturae. Hoc permittit utentes libere eligere exemplar aptissimum secundum altitudinem processus, superficiem figuram et praecisionem requisita, flexibilitatem et efficientiam emendantes.
Cum traditional fundo vel vexillum rotundum nasi extremitatis molendinorum, sulcus profundus rotundus nasi consilio leniorem transitum praebet. Haec factura adiuvat ad resistentiam incidendam et stabilitatem meliorandam minuendam, eamque apprime aptam ad praecisionem superficiei processus ut cavitates formas et celeritatem insculptam altam.
NNH-4RSP summus perficientur AlTiSiN efficiens cum optima caloris et oxidationis resistentia adoptat. Hoc dat instrumentum ad acuendam aciem aciei servandam etiam sub condiciones altae et temperatae, quae instrumentum vestium minuit. Particula ultra-subtilis (0.4µm) subiecta cum 30° helix angulus coniuncta efficit evacuationem lenis chip, meliorem efficiendi vim et constantiam augendi ulterius, cum summus duritiei operas expediat.
Haec molendinorum finis series variis materiis apta est, inclusa chalybe carbonii, mixturae chalybis, praedurato ferro (35-45HRC), chalybe aestu affecto (45-55HRC), et chalybe immaculato (≤30HRC). Valet etiam pro admixtionibus aeris et aliis metallis non ferreis. Praesertim in alta celeritate et alta duritia machinis applicationes, NNH-4RSP optimum lapsum resistentiae ac stabilitatis exhibet..
