• Brevis consilium ferrum renitente instrumenti labore multum meliorit et altiorem superficiem qualitatem workpiece consequi potest.
• Maxime adhibetur ad expediendas materias chalybeas HRC45~70, praesertim ad praecisionem formarum partium quae diuturnum tempus exigunt.

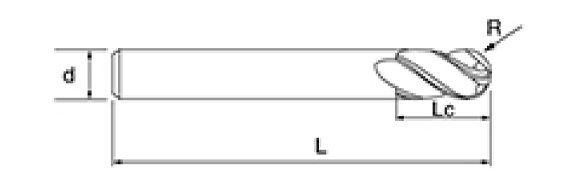

| Nec. | Diameter D | R Anglus R | Tibia Longitud*o Lc | altiore Longitudo L | Shank Dia d | Ferrum Comitis F |
| NNCH-4B-D6 | 6 | 3 | 9 | 50 | 6 | 4 |
| NNCH-4B-D8 | 8 | 4 | 12 | 60 | 8 | 4 |
| NNCH-4B-D10 | 10 | 5 | 15 | 75 | 10 | 4 |
| NNCH-4B-D12 | 12 | 6 | 18 | 75 | 12 | 4 |
| NNCH-4B-D6 | 6 | 3 | 9 | 75 | 6 | 4 |
| NNCH-4B-D8 | 8 | 4 | 12 | 75 | 8 | 4 |
| NNCH-4B-D6 | 6 | 3 | 9 | 100 | 6 | 4 |
| NNCH-4B-D8 | 8 | 4 | 12 | 100 | 8 | 4 |
| NNCH-4B-D10 | 10 | 5 | 15 | 100 | 10 | 4 |
| NNCH-4B-D12 | 12 | 6 | 18 | 100 | 12 | 4 |
| Instrumentum Series | Diameter | Rad*ius | Rad*ius angularis | Tibia longitudo | Longitudo efficax | Longitudo altiore | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNCH Ultra Hard and High-Precision Carbide finis Mills | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

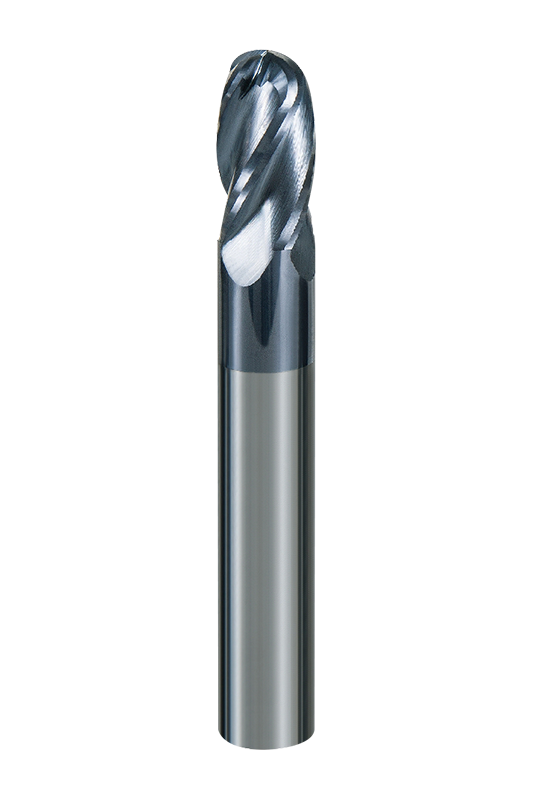

Globus NNCH-4B super-dura 4-tibia nasi finis molendini in variis magnitudinibus praesto est, incluso 6mm, 8mm, 10mm et 12mm diametri, cum diversis radii et tibiis bene longitudinis. Haec flexibilitas dat utentes utentes eligere aptissimum instrumentum ad certas machinationes necessarias, sic optimizing effectus et efficientiam.
Finis hic molendini notat globulum nasi 4-tibiae designatum, quod excellentem rigiditatem et stabilitatem praebet comparatis instrumentis 2-tibiae vel 3-tibiae traditis, extenuandis tremoribus et superficiei meliori consummationis. 30° Helix angulus lenis sectionis vim distributionis efficit, eamque maxime idoneam ad machinis superficierum complexarum ac minutissimas formas accommodat.
Hoc molarium dromonis efficitur ex materia carbide ultra-micronizata cum summus perficientur MT coating, quae signanter frictionem minuit et auget resistentiam et proprietates anti-haerentes. Cum ultra-altae duritiei HRC65, instrumentum manet acutus sub alta velocitate et onere incidendi condiciones, instrumentum vitae extendens et altiore fructibus melioris.
Series NNCH-4B specimen est ad machinationem materiae duritiae altae, quae ferro obdurato (HRC45-65), calor tractato ferro, ferro immaculato et ferro mixturae..
