• Brevis consilium ferrum renitente instrumenti labore multum meliorit et altiorem superficiem qualitatem workpiece consequi potest.
• Maxime adhibetur ad expediendas materias chalybeas HRC45~70, praesertim ad praecisionem formarum partium quae diuturnum tempus exigunt.

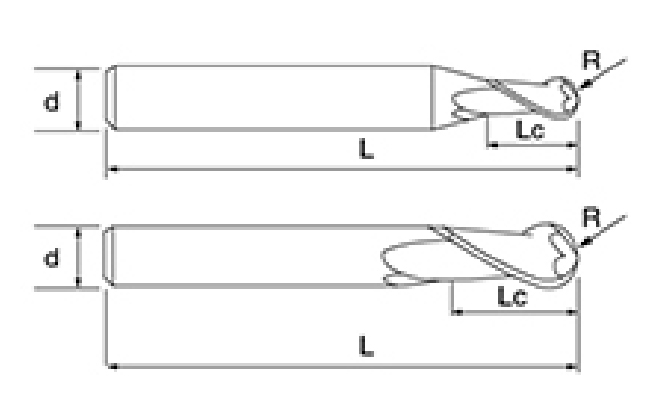

| Nec. | Diameter D | R Anglus R | Tibia Longitud*o Lc | altiore Longitudo L | Shank Dia d | Ferrum Comitis F |
| NNCH-2B-D1-L2 | 1 | 0.5 | 2 | 50 | 4 | 2 |
| NNCH-2B-D1.5-L3 | 1.5 | 0.75 | 3 | 50 | 4 | 2 |
| NNCH-2B-D1.5-L3 | 1.5 | 0.75 | 3 | 50 | 6 | 2 |
| NNCH-2B-D2-L4 | 2 | 1 | 4 | 50 | 4 | 2 |
| NNCH-2B-D2-L4 | 2 | 1 | 4 | 50 | 6 | 2 |
| NNCH-2B-D2.5-L5 | 2.5 | 1.25 | 5 | 50 | 4 | 2 |
| NNCH-2B-D2.5-L5 | 2.5 | 1.25 | 5 | 50 | 6 | 2 |
| NNCH-2B-D3-L6 | 3 | 1.5 | 6 | 50 | 4 | 2 |
| NNCH-2B-D3-L6 | 3 | 1.5 | 6 | 50 | 6 | 2 |
| NNCH-2B-D3.5-L7 | 3.5 | 1.75 | 7 | 50 | 4 | 2 |
| NNCH-2B-D3.5-L7 | 3.5 | 1.75 | 7 | 50 | 6 | 2 |
| NNCH-2B-D4-L8 | 4 | 2 | 8 | 50 | 4 | 2 |
| NNCH-2B-D4-L8 | 4 | 2 | 8 | 50 | 6 | 2 |
| NNCH-2B-D5-L9 | 5 | 2.5 | 9 | 50 | 6 | 2 |
| NNCH-2B-D6-L9 | 6 | 3 | 9 | 50 | 6 | 2 |
| NNCH-2B-D8-L12 | 8 | 4 | 12 | 60 | 8 | 2 |
| NNCH-2B-D10-L15 | 10 | 5 | 15 | 75 | 10 | 2 |
| NNCH-2B-D12-L18 | 12 | 6 | 18 | 75 | 12 | 2 |
| NNCH-2B-D4-L8 | 4 | 2 | 8 | 75 | 4 | 2 |
| NNCH-2B-D4-L8 | 4 | 2 | 8 | 75 | 6 | 2 |
| NNCH-2B-D6-L9 | 6 | 3 | 9 | 75 | 6 | 2 |
| NNCH-2B-D8-L12 | 8 | 4 | 12 | 75 | 8 | 2 |
| NNCH-2B-D6-L9 | 6 | 3 | 9 | 100 | 6 | 2 |
| NNCH-2B-D8-L12 | 8 | 4 | 12 | 100 | 8 | 2 |
| NNCH-2B-D10-L15 | 10 | 5 | 15 | 100 | 10 | 2 |
| NNCH-2B-D12-L18 | 12 | 6 | 18 | 100 | 12 | 2 |
| Processed Materials | Pre-Harded Steel 40~50HRC | Obduratus Steel 50~60HRC | Obduratus Steel 60~ 68HRC | |||||||||

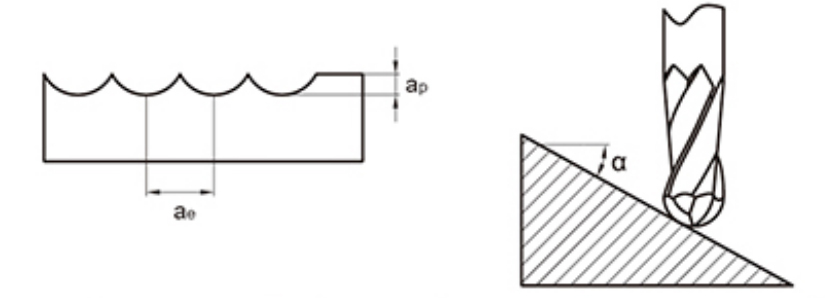

| Ball Caput Radius (mm) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | a p (mm) | a e (mm) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | a p (mm) | a e (mm) | Mobilitate gyratorio (min -1 ) | Pascite Mobilitate (mm/min) | a p (mm) | a e (mm) |
| R0.5 | 40000 | 1900 | 0.01 | 0.05 | 36000 | 1500 | 0.01 | 0.05 | 32000 | 1400 | 0.01 | 0.05 |
| R1.0 | 33000 | 3100 | 0.02 | 0.075 | 26000 | 2100 | 0.02 | 0.075 | 24000 | 2000 | 0.02 | 0.075 |
| R1.5 | 29000 | 4100 | 0.03 | 0.1 | 23000 | 2900 | 0.03 | 0.1 | 21000 | 2600 | 0.03 | 0.1 |
| R2.0 | 22000 | 3900 | 0.04 | 0.15 | 17000 | 2500 | 0.04 | 0.15 | 15500 | 2100 | 0.04 | 0.15 |
| R2.5 | 17500 | 3500 | 0.05 | 0.15 | 13500 | 2200 | 0.05 | 0.15 | 13000 | 2000 | 0.05 | 0.15 |
| R3.0 | 15000 | 3100 | 0.06 | 0.2 | 11500 | 1700 | 0.06 | 0.2 | 10500 | 1500 | 0.06 | 0.2 |
| R4.0 | 11000 | 2500 | 0.08 | 0.25 | 8600 | 1600 | 0.08 | 0.25 | 8000 | 1400 | 0.08 | 0.25 |
| R5.0 | 9000 | 2000 | 0.1 | 0.3 | 7000 | 1400 | 0.1 | 0.3 | 6000 | 1200 | 0.1 | 0.3 |
| R6.0 | 7500 | 1800 | 0.1 | 0.35 | 5700 | 1300 | 0.1 | 0.35 | 5300 | 1200 | 0.1 | 0.35 |
| R8.0 | 5500 | 1800 | 0.1 | 0.4 | 4300 | 1300 | 0.1 | 0.4 | 4000 | 1200 | 0.1 | 0.4 |
| R10.0 | 4500 | 1800 | 0.1 | 0.5 | 3500 | 1300 | 0.1 | 0.5 | 3200 | 1200 | 0.1 | 0.5 |
| Maximum secans profundum |  | |||||||||||
1. Quaeso utere summus exquisite et excelsus rigor armorum et adfixa.
2. Cum rigiditas machinae instrumenti et operis institutionis pauper est, vibratio et abnormis sonus fieri potest. Hoc in casu, celeritas et rate cibaria in mensa supra annum reduci debent.
3. Commodo utere refrigerationem aeris vel MQL (minuta copia olei caliginis refrigerantis).
4. Commendatur ut sequentiales mills pro parte millsurarum.
5. Minimize instrumentum suspensionis longitudinem quam maxime sine impedimento.
| Instrumentum Series | Diameter | Rad*ius | Rad*ius angularis | Tibia longitudo | Longitudo efficax | Longitudo altiore | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNCH Ultra Hard and High-Precision Carbide finis Mills | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

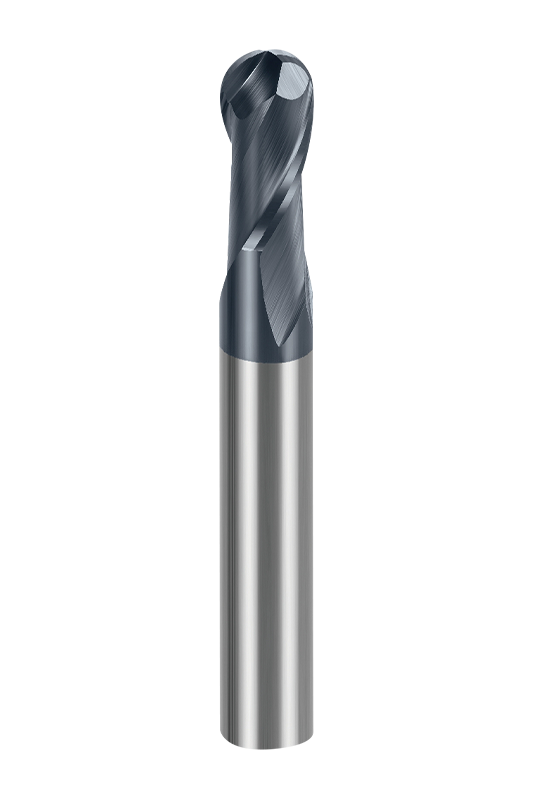

NNCH-2B ultra durum 2 tibiarum globulum nasi extremitatis molendinorum in variis magnitudinibus praesto sunt, ab 1 mm ad 12mm diametro vndique, et aequari possunt cum diversis longi- tudinibus et longitudinibus, secundum varias necessitates ad occurrendum flexibilitatem exigentiis exquisitae machinationis. Liberum arbitrium variarum specierum ac exemplorum idoneum efficit pro variis machinis scenicis, altiorem aptabilitatem in machinis machinis procurando.
Globus finis figurae designans angulum instrumenti secans optimizat, eum superiorem in machinis superficiebus complexis, praesertim aptam ad fabricam formandam, partes exquisitas machinis et aliis scaenae quae altam metam et altam praecisionem requirunt. 30° Helix designatus angulus adiuvat ad resistentiam minuendam et ad ampliandum chippis remotionem efficientiam, eo quod stabilitatem et instrumentum vitae machinis augeat.
Molendinarius dromonem efficit ex materia carbide micro-particula ultra-subtilis, coniuncta cum processu summi subtilitate coatingendi, qui valde meliores uti resistentia et anti-scasione effectus gerunt. Ad duritiem altiorem HRC≤65 pervenire potest, praestantem acumen et stabilitatem praestans cum materiae duritiei machinatio.
Productum hoc aptum est amplis materiae processui, incluso chalybe carbonii, mixturae chalybis, praedurato ferro (HRC35-45), chalybe obdurato (HRC45-65), summus duritiei calor tractandi ferrum, etc. Utrum alta praecisio est forma processus vel efficiens incisionem materiarum durarum, in NNCH-2B globulus ultimi duo globulus molendini finis egregius effectus potest.
