II Flute circa nasum finem Mills Manufacturers

Home / Products / Solidum Carbide finem Mills / NNC Universal Carbide Milling Cutters / II Flute circa nasum finem Mills
View All Projects

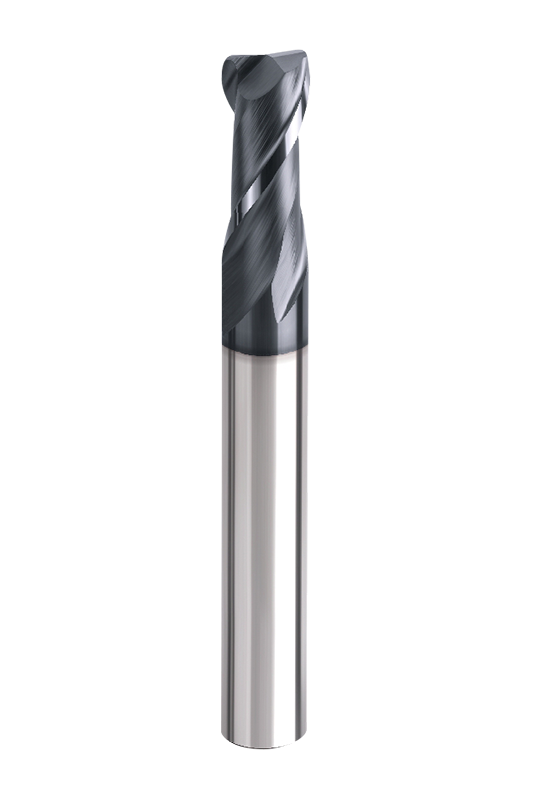

II Flute circa nasum finem Mills

II Flute circa nasum finem Mills

•  Molendinaria universalis dromonis omnium seriei ferri materiarum curationi calori apta est. U-rimam structuram consilio habet, et ad asperam et finiendam aptam est.
•  Convenit etiam ad processus materiarum non chalyrum et aluminii. Integram extensionem habet specificationum et exemplorum et amplis usuum.

  • II Flute circa nasum finem Mills
Contact Us

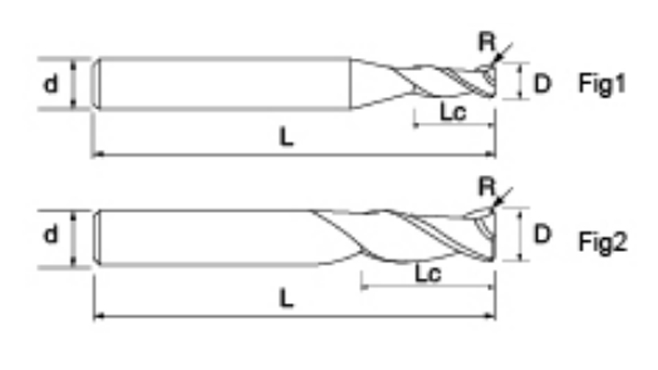

Nec.

Diameter

D

R Anglus

R

Tibia Longitud*o

Lc

altiore Longitudo

L

Shank Dia

d

Ferrum Comitis

F

NNC-2R-D1-R0.2 1 0.2 3 50 4 2
NNC-2R-D1-R0.2 1 0.2 3 50 6 2
NNC-2R-D1.5-R0.2 1.5 0.2 4 50 4 2
NNC-2R-D1.5-R0.2 1.5 0.2 4 50 6 2
NNC-2R-D2-R0.2 2 0.2 6 50 4 2
NNC-2R-D2-R0.2 2 0.2 6 50 6 2
NNC-2R-D2-R0.5 2 0.5 6 50 4 2
NNC-2R-D2-R0.5 2 0.5 6 50 6 2
NNC-2R-D3-R0.2 3 0.2 8 50 3 2
NNC-2R-D3-R0.2 3 0.2 8 50 4 2
NNC-2R-D3-R0.2 3 0.2 8 50 6 2
NNC-2R-D3-R0.5 3 0.5 8 50 3 2
NNC-2R-D3-R0.5 3 0.5 8 50 4 2
NNC-2R-D3-R0.5 3 0.5 8 50 6 2
NNC-2R-D4-R0.2 4 0.2 10 50 4 2
NNC-2R-D4-R0.2 4 0.2 10 50 6 2
NNC-2R-D4-R0.5 4 0.5 10 50 4 2
NNC-2R-D4-R0.5 4 0.5 10 50 6 2
NNC-2R-D4-R1 4 1 10 50 4 2
NNC-2R-D4-R1 4 1 10 50 6 2
NNC-2R-D5-R0.5 5 0.5 13 50 5 2
NNC-2R-D5-R0.5 5 0.5 13 50 6 2
NNC-2R-D5-R1 5 1 13 50 5 2
NNC-2R-D5-R1 5 1 13 50 6 2
NNC-2R-D6-R0.2 6 0.2 16 50 6 2
NNC-2R-D6-R0.5 6 0.5 16 50 6 2
NNC-2R-D6-R1 6 1 16 50 6 2
NNC-2R-D8-R0.2 8 0.2 20 60 8 2
NNC-2R-D8-R0.3 8 0.3 20 60 8 2
NNC-2R-D8-R0.5 8 0.5 20 60 8 2
NNC-2R-D8-R1 8 1 20 60 8 2
NNC-2R-D10-R0.2 10 0.2 25 75 10 2
NNC-2R-D10-R0.3 10 0.3 25 75 10 2
NNC-2R-D10-R0.5 10 0.5 25 75 10 2
NNC-2R-D10-R1 10 1 25 75 10 2
NNC-2R-D10-R1.5 10 1.5 25 75 10 2
NNC-2R-D10-R2 10 2 25 75 10 2
NNC-2R-D12-R0.5 12 0.5 30 75 12 2
NNC-2R-D12-R1 12 1 30 75 12 2
NNC-2R-D12-R2 12 2 30 75 12 2
NNC-2R-D12-R3 12 3 30 75 12 2
NNC-2R-D16-R1 16 1 45 100 16 2
NNC-2R-D16-R2 16 2 45 100 16 2
NNC-2R-D16-R3 16 3 45 100 16 2
NNC-2R-D20-R1 20 1 50 100 20 2
NNC-2R-D20-R2 20 2 50 100 20 2
NNC-2R-D20-R3 20 3 50 100 20 2

Processed Materials Ferrum mittite
Nodular Irrum 		Carbon Steel, Alloy Steel
~750N/mm² 		Carbon Steel, Alloy Steel
~30HRC 		Pre-duratum Ferro exstinctus et temperatus Steel
~40HRC 		Diver Pre-duratum Ferro exstinctus et temperatus Steel
~50HRC
Diameter
(mm) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min)
1 20000 200 20000 200 20000 160 20000 160 20000 60 20000 120
2 15000 320 15000 320 15000 290 15000 280 11150 84 13000 180
3 14000 545 14000 545 13000 510 10600 420 7500 120 8500 330
4 10800 560 10800 560 10000 520 8000 430 5500 130 6500 335
5 8200 580 8200 580 7600 540 6400 450 4500 130 5000 355
6 7000 600 7000 600 6400 550 5300 460 3700 140 4200 360
8 5200 600 5200 600 4800 550 4000 460 2800 140 3200 365
10 4200 580 4200 580 3800 540 3200 445 2200 140 2500 350
12 3500 580 3500 580 3200 540 2650 445 1850 140 2100 350

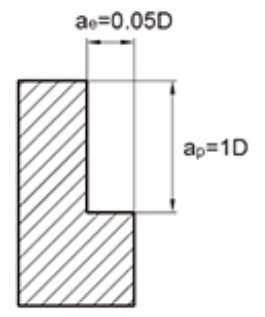

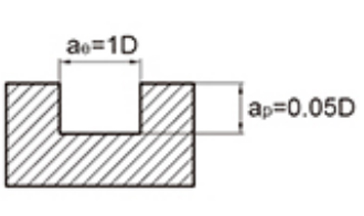

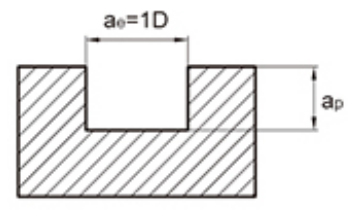

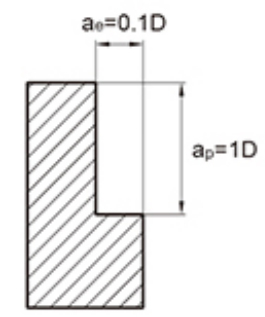

Maximum secans profundum
Instrumentum Diameter Ap cædens Profundum
1 0.15D
∅3 0.3D

1. Mensa suprascripta vexillum valores ad machinam lateralem molendini ostendit. Cum incisurae striatae cum ferramento, celeritas mensae superioris sit 50%~70%, et rate cibaria 40%~ 60% ut valor normae debet esse.
2. Quaeso utere instrumenta machinarum et instrumentorum summorum exquisitorum detentorum.
3. Quaeso utere aere refrigerando vel secando liquorem minus probabile ad fumum producendum.
4. Commendatur ut sequentiales mills pro parte millsurarum.
Cum rigiditas machinae instrumenti et institutionis workpiece pauper est, tremor et abnormis sonus fieri potest. Hoc in casu, celeritas et rate in mensa supra cibaria reduci debent anni in annos.
6. Minimize instrumentum longitudo imminentium quantum fieri potest sine impedimento.
