2 Flute Ball Naribus finem Mills Manufacturers

Home / Products / Solidum Carbide finem Mills / NNC Universal Carbide Milling Cutters / 2 Flute Ball Naribus finem Mills
View All Projects

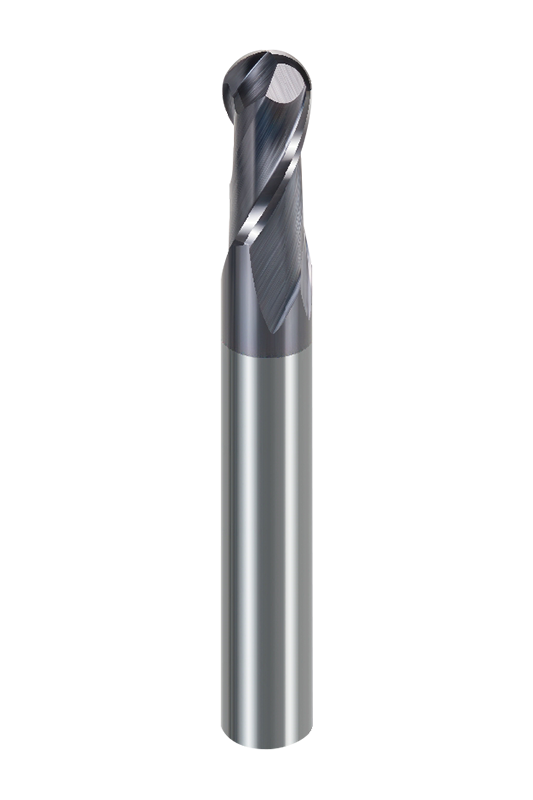

2 Flute Ball Naribus finem Mills

2 Flute Ball Naribus finem Mills

•  Molendinaria universalis dromonis omnium seriei ferri materiarum curationi calori apta est. U-rimam structuram consilio habet, et ad asperam et finiendam aptam est.
•  Convenit etiam ad processus materiarum non chalyrum et aluminii. Integram extensionem habet specificationum et exemplorum et amplis usuum.

  • 2 Flute Ball Naribus finem Mills
Contact Us

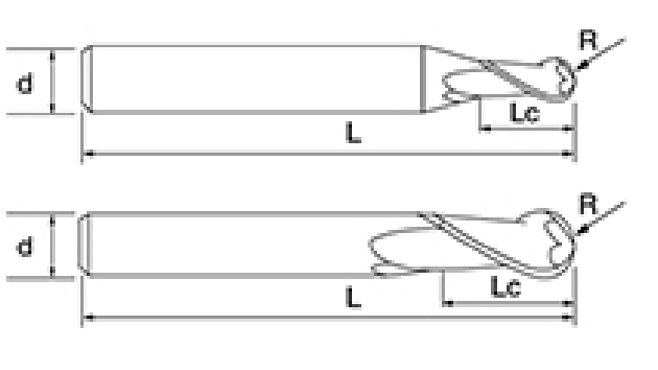

Nec.

Diameter

D

R Anglus

R

Tibia Longitud*o

Lc

altiore Longitudo

L

Shank Dia

d

Ferrum Comitis

F

NNC-2B-D1 1 0.5 2 50 4 2
NNC-2B-D1 1 0.5 2 50 6 2
NNC-2B-D1.5 1.5 0.75 3 50 4 2
NNC-2B-D1.5 1.5 0.75 3 50 6 2
NNC-2B-D2 2 1 4 50 4 2
NNC-2B-D2 2 1 4 50 6 2
NNC-2B-D2.5 2.5 1.25 5 50 4 2
NNC-2B-D2.5 2.5 1.25 5 50 6 2
NNC-2B-D3 3 1.5 6 50 3 2
NNC-2B-D3 3 1.5 6 50 4 2
NNC-2B-D3 3 1.5 6 50 6 2
NNC-2B-D3.5 3.5 1.75 8 50 4 2
NNC-2B-D3.5 3.5 1.75 8 50 6 2
NNC-2B-D4 4 2 8 50 4 2
NNC-2B-D4 4 2 8 50 6 2
NNC-2B-D4 4 2 8 75 4 2
NNC-2B-D4 4 2 8 100 4 2
NNC-2B-D5 5 2.5 10 50 5 2
NNC-2B-D5 5 2.5 10 50 6 2
NNC-2B-D6 6 3 12 50 6 2
NNC-2B-D6 6 3 12 75 6 2
NNC-2B-D6 6 3 12 100 6 2
NNC-2B-D8 8 4 16 60 8 2
NNC-2B-D8 8 4 16 75 8 2
NNC-2B-D8 8 4 16 100 8 2
NNC-2B-D10 10 5 20 75 10 2
NNC-2B-D10 10 5 20 100 10 2
NNC-2B-D10 10 5 20 150 10 2
NNC-2B-D12 12 6 24 75 12 2
NNC-2B-D12 12 6 24 100 12 2
NNC-2B-D12 12 6 24 150 12 2
NNC-2B-D16 16 8 32 100 16 2
NNC-2B-D20 20 10 40 100 20 2

Processed Materials Ferrum mittite
Nodular Irrum 		Carbon Steel, Alloy Steel
~750N/mm² 		Carbon Steel, Alloy Steel
~30HRC 		Pre-duratum Ferro exstinctus et temperatus Steel
~40HRC 		Diver Pre-duratum Ferro exstinctus et temperatus Steel
~50HRC
Diameter
(mm) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min -1 ) 		Pascite Mobilitate
(mm/min)
R0.5 40000 800 40000 800 38000 700 32000 320 22300 200 25000 275
R1.0 24000 900 24000 900 19000 760 16000 400 11150 230 13000 275
R1.5 15500 950 15500 950 12750 760 10600 450 7400 290 8500 280
R2.0 11500 950 11500 950 9550 760 8000 550 5550 370 6500 370
R2.5 9500 1050 9500 1050 7650 800 6400 550 4450 370 5000 375
R3.0 8000 1050 8000 1050 6400 800 5300 580 3700 390 4200 390
R4.0 6000 1300 6000 1300 4800 950 4000 700 2750 455 3200 440
R5.0 4800 1200 4800 1200 3800 900 3200 650 2200 430 2500 440
R6.0 4000 1100 4000 1100 3200 840 2650 610 1850 430 2100 420
R8.0 3000 1050 3000 1050 2400 800 2000 600 1350 380 1600 375
R10.0 2400 950 2400 950 1900 680 1600 560 1100 370 1250 330

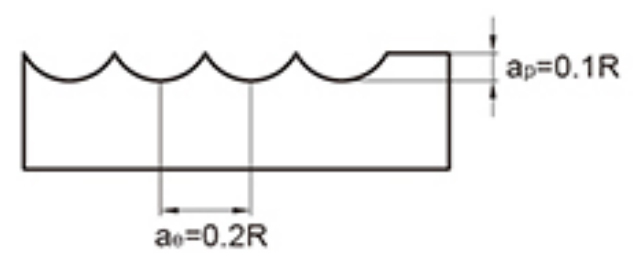

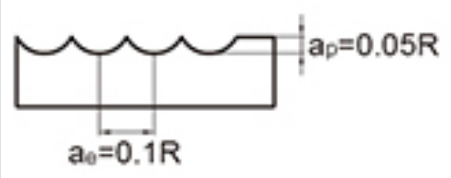

Maximum secans profundum

1. Quaeso utere instrumenta machinarum et instrumentorum summorum exquisitorum detentorum.
2. Quaeso utere aere refrigerando vel secando fluidum minus probabile ad fumum producendum.
3. Commendatur ut sequentiales mills pro parte millsurandi.
4. Cum rigiditas machinae instrumenti et operis institutionis pauper est, vibratio et sonus alius abnormis fieri potest. Hoc in casu, celeritas et rate cibaria in mensa supra annum reduci debent.
5. Minimize instrumentum suspensionis longitudinem quam maxime sine impedimento.
