Custom IV Flute inaequales dens Pix finem molendinum ad Diver Machining

Home / Products / Solidum Carbide finem Mills / NNB Carbide finis Mills pro Diver Machining / IV Flute inaequales dens Pix finem molendinum ad Diver Machining
View All Projects

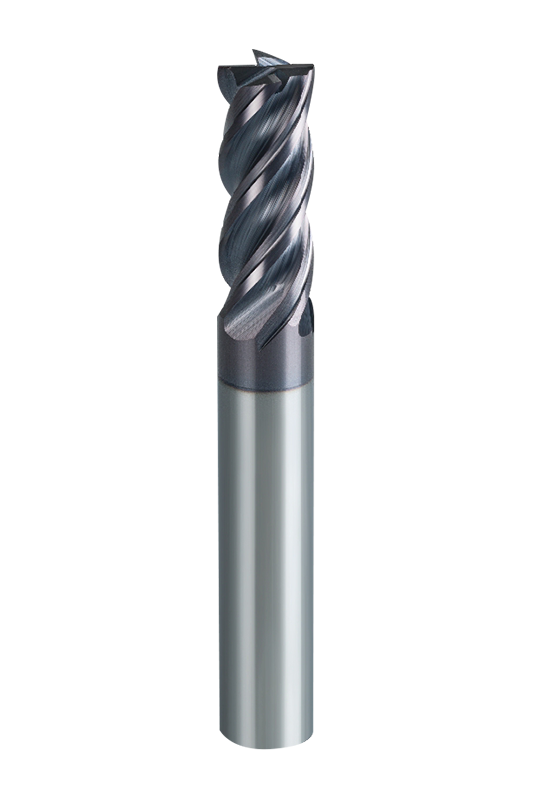

IV Flute inaequales dens Pix finem molendinum ad Diver Machining

IV Flute inaequales dens Pix finem molendinum ad Diver Machining

  • IV Flute inaequales dens Pix finem molendinum ad Diver Machining
Contact Us
Nec.

Diameter

D

Tibia Longitud*o

Lc

altiore Longitudo

L

Shank Dia

d

Ferrum Comitis

F

NNB-4T-D4 4 12 50 4 4
NNB-4T-D4 4 12 50 4 4
NNB-4T-D5 5 13 50 6 4
NNB-4T-D6 6 18 50 6 4
NNB-4T-D7 7 20 60 8 4
NNB-4T-D8 8 24 60 8 4
NNB-4T-D9 9 25 75 10 4
NNB-4T-D10 10 30 75 10 4
NNB-4T-D11 11 30 75 12 4
NNB-4T-D12 12 30 75 12 4
NNB-4T-D14 14 35 100 14 4
NNB-4T-D16 16 45 100 16 4
NNB-4T-D18 18 45 100 18 4
NNB-4T-D20 20 50 100 20 4

Processed Materials Ferrum, Carbon Steel, Alloy Steel
~30HRC 		Diver Pre-duratum Ferro exstinctus et temperatus Steel
~40HRC 		Pre-duratum Ferro exstinctus et temperatus Steel
~50HRC 		Obduratus Steel
~55HRC
Diameter
(mm) 		Mobilitate gyratorio
(min⁻¹) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min⁻¹) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min⁻¹) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min⁻¹) 		Pascite Mobilitate
(mm/min) 		Mobilitate gyratorio
(min⁻¹) 		Pascite Mobilitate
(mm/min)
3 15900 1220 8500 180 13270 950 10600 630 7430 360
4 11900 1260 6370 190 9950 970 8000 645 570 370
5 9500 1350 5060 190 7960 1010 6400 675 4460 390
6 7900 1330 4250 210 6630 1030 5300 690 3710 390
8 5900 1330 3180 210 4970 1020 4000 680 2785 405
10 4700 1310 2550 210 3980 1010 3200 675 2230 375
12 4000 1310 2120 210 3310 1010 2650 675 1855 375
14 3400 1220 1820 180 2840 945 2300 630 1590 360
16 3000 1220 1590 180 2480 945 2000 630 1390 360
18 2600 1200 1410 160 2210 930 1800 620 1240 350
20 2400 1200 1270 160 1990 930 1600 620 1115 350

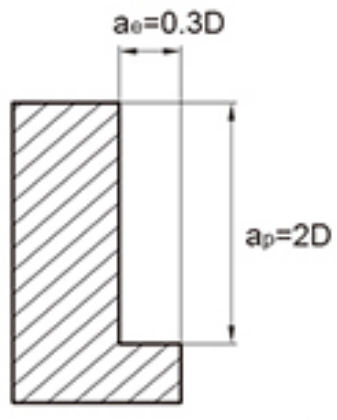

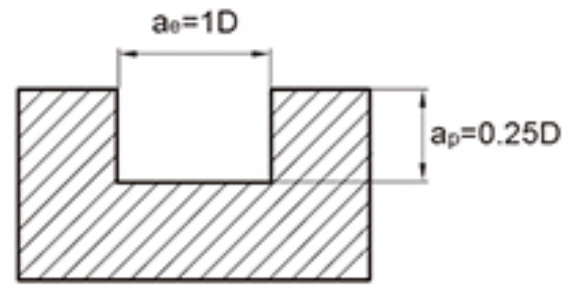

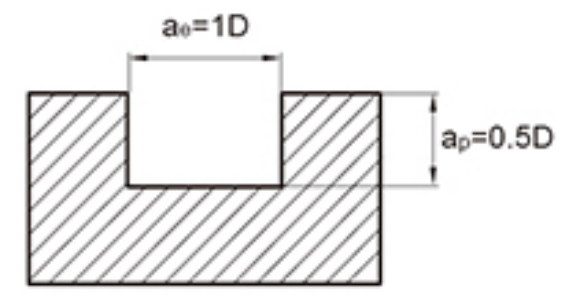

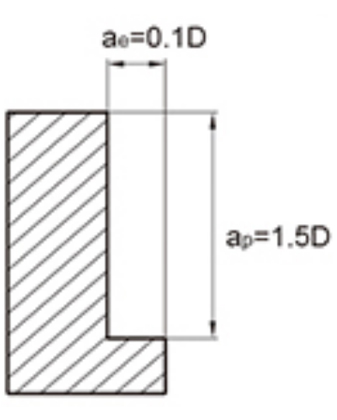

Maximum secans profundum

1. Mensa suprascripta vexillum valores ad machinam lateralem molendini ostendit. Cum incisurae striatae cum ferramento, celeritas 60% ad 80% superioris tabulae debet esse, et rate cibaria in% ad 70% ut vexillum niti debet.
2. Quaeso utere instrumenta machinarum et instrumentorum summorum exquisitorum detentorum.
3. Quaeso utere aere refrigerando vel secando liquorem minus probabile ad fumum producendum.
4. Commendatur ut sequentiales mills pro parte millsurarum.
5. Cum institutione machinarum instrumentorum et operum pauperum sit, vibrationes et soni abnormes fieri possunt. Hoc in casu, celeritas et rate in mensa supra cibaria reduci debent anni in annos.
6. Minimize instrumentum imminere quam maxime sine impedimento.

De nobis
Changzhou Maton Tools Co.,Ltd.
  • 0

    Enterprise constitutionis

  • 0+

    Employees

Changzhou Maton Tools Co.,Ltd.

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are IV Flute inaequales dens Pix finem molendinum ad Diver Machining Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional IV Flute inaequales dens Pix finem molendinum ad Diver Machining Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.

FAQ
  • Post inquisitionem tibi misimus, quousque responsionem accipiet?

    Respondebimus tibi intra XII horas post inquisitionem in feriis acceptis.

  • Esne directus fabrica vel societas mercaturae?

    Fabricatores sumus, nosmet ipsos facimus et vendimus.

  • Quid products potes offerre?

    We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional IV Flute inaequales dens Pix finem molendinum ad Diver Machining Suppliers.

  • Quid est pelagus application areas in productum?

    Producti nostri totam fere formam industriam, defensionem industriam, aerospace industriam, autocineticam industriam, electronic productos aliosque campos prope tegunt.

  • Lorem products facere potes?

    Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom IV Flute inaequales dens Pix finem molendinum ad Diver Machining.

  • Quae est productio capacitas societatis tuae?

    We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are IV Flute inaequales dens Pix finem molendinum ad Diver Machining Factory

  • Ut tuus turba curare productum qualitas?

    Uno modo post quamlibet processum, inspectiones debitas peragimus. Pro producto finali, C% plenam inspectionem secundum exigentias mos et signa internationalia agemus;
    Deinde habemus provectiorem et integram summa incisura armorum probationem in industria, ut analysres spectralis, microscopia metallographica, etc., quae stabilitatem et constantiam instrumentorum incisionis efficere possunt, dum alta praecisio probatio elit occurrens ad instrumenta secanda requisita.

  • Quid est solucionis methodo?

    Cum commemoramus, methodum transactionem apud te confirmabimus, FOB, CIF, CNF vel alia optiones. Cum mole producendo, antecedens solutionem facere solemus primum 30%, deinde reliquam stateram in praesentatione rogationis oneris solvemus. Plerumque T/T uti methodo solutionis utimur, sed L/C etiam gratum est.
